Timing Belt Assembly Note

Verify that all timing marks are correctly aligned.

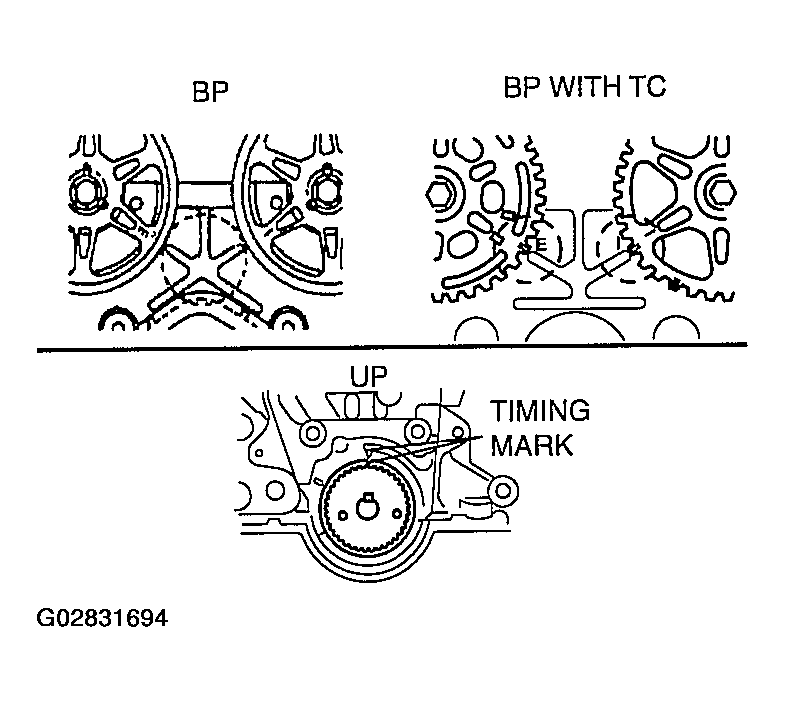

Fig 1: Aligning Timing Marks
Courtesy of MAZDA MOTORS CORP.
