Tensioner And Tensioner Spring Assembly Note

  1. Install the tensioner spring so that the chamfer of dumping rubber faces the right side as shown.
  2. Push the tensioner in the direction of the arrow and hand-tighten the lock bolt.

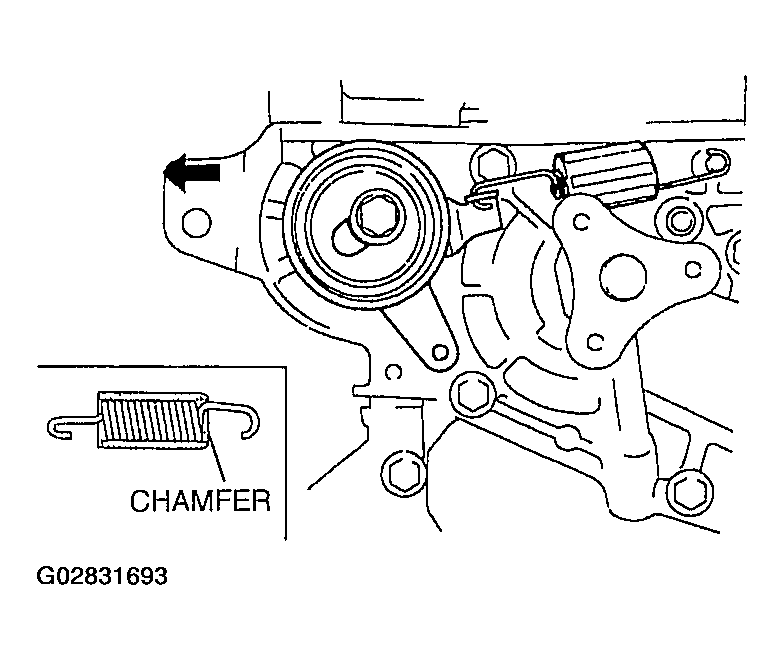

    Fig 1: Pushing Tensioner Outward
    G02831693Courtesy of MAZDA MOTORS CORP.
