Pulley Boss Disassembly Note

  1. Turn the crankshaft clockwise and align the timing marks of the pulleys.
    NOTE:
    • For the crankshaft side, face the locating pin on the pulley boss straight up.

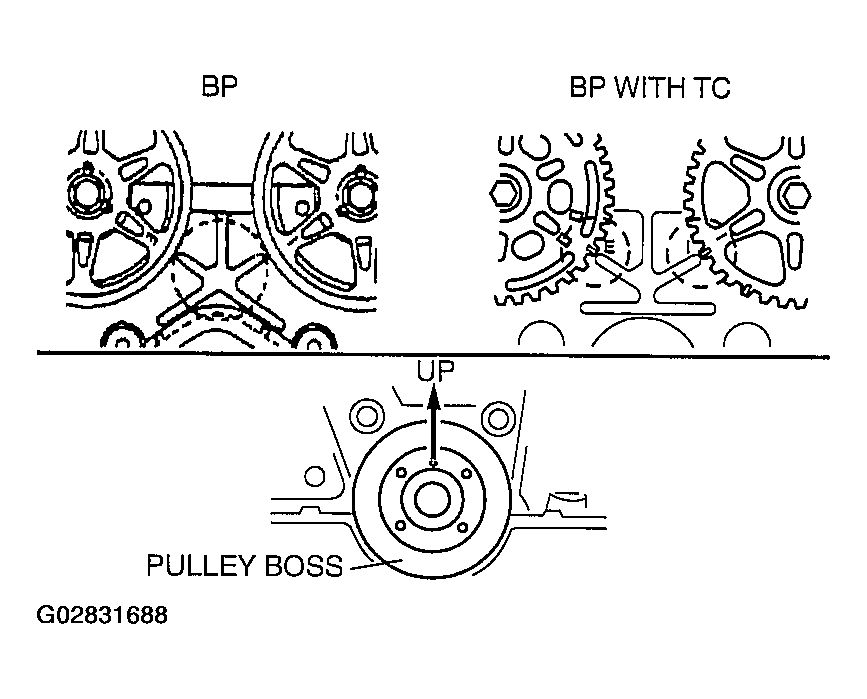

    Fig 1: Aligning Timing Marks
    G02831688Courtesy of MAZDA MOTORS CORP.
  2. Hold the crankshaft using the SST  .

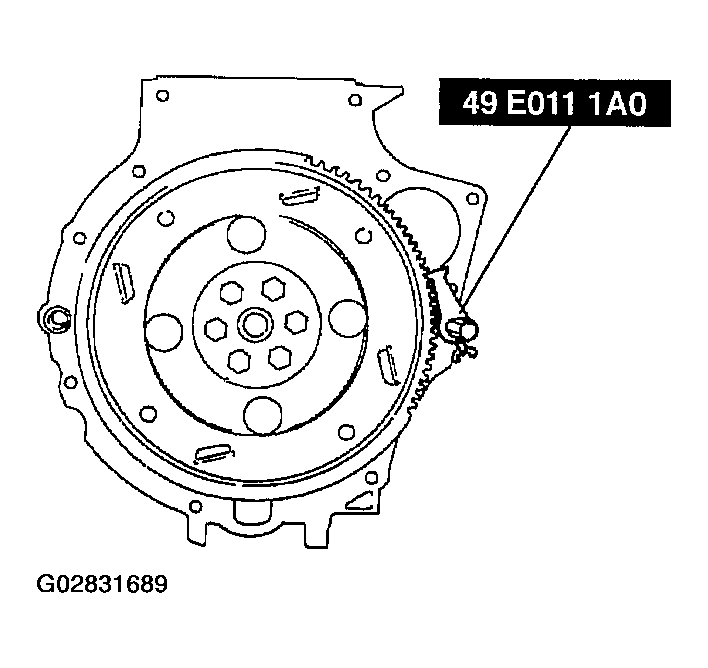

    Fig 2: Holding Crankshaft
    G02831689Courtesy of MAZDA MOTORS CORP.
