Valve Spring Assembly Note

  1. Install the valve spring with the closer pitch toward the cylinder head.

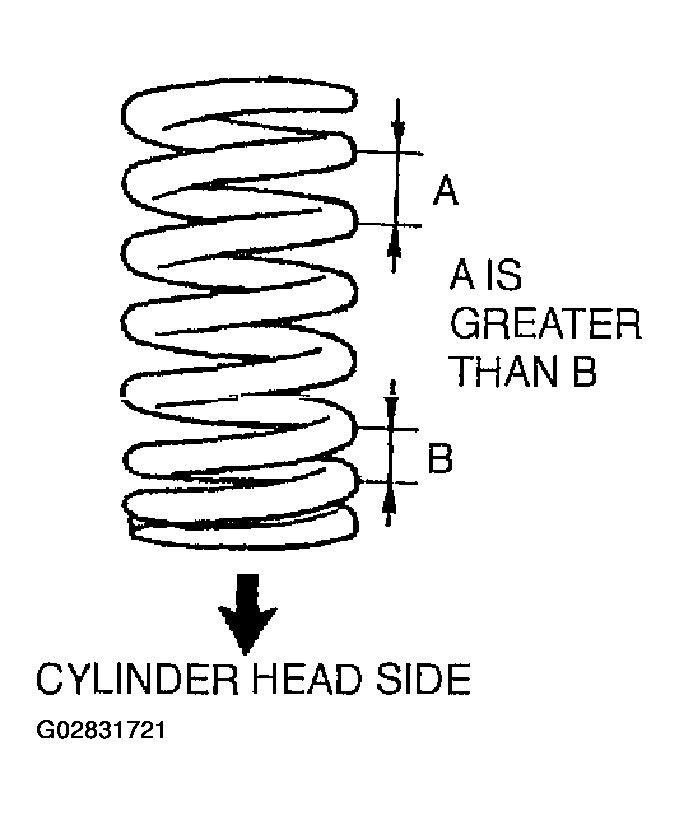

    Fig 1: Identifying Valve Spring Pitch
    G02831721Courtesy of MAZDA MOTORS CORP.
