Cylinder Head Disassembly/Assembly (II): Notes

  1. Disassemble in the order indicated in the figure.

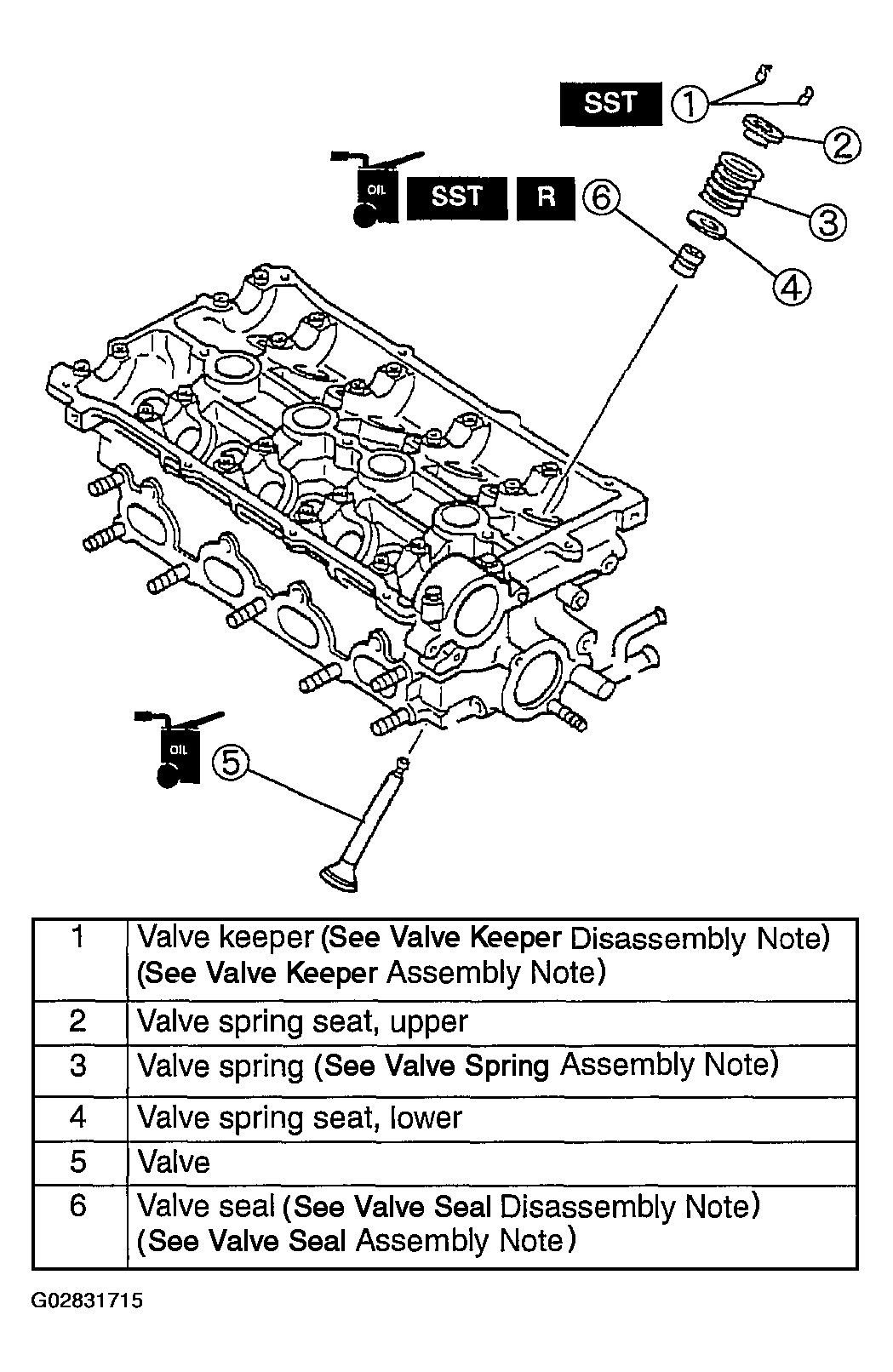

    Fig 1: Disassembling/Assembling Cylinder Head
    G02831715Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
