Main Bearing Cap Assembly Note

  1. Install the crankshaft and the main bearing caps according to the cap number and "<=" mark which indicates front side.

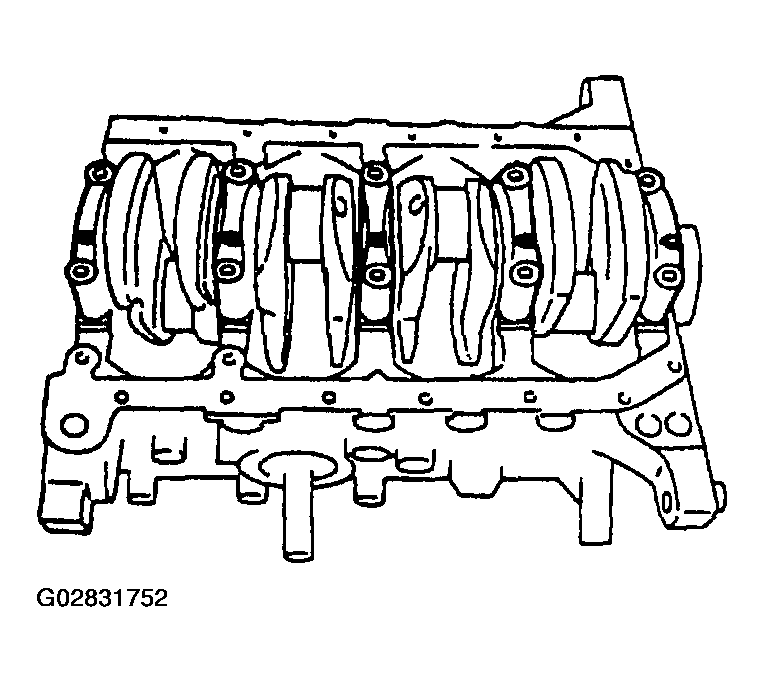

    Fig 1: Installing Crankshaft & Main Bearing Caps
    G02831752Courtesy of MAZDA MOTORS CORP.
  2. Tighten the main bearing cap bolts in two or three steps in the order shown.

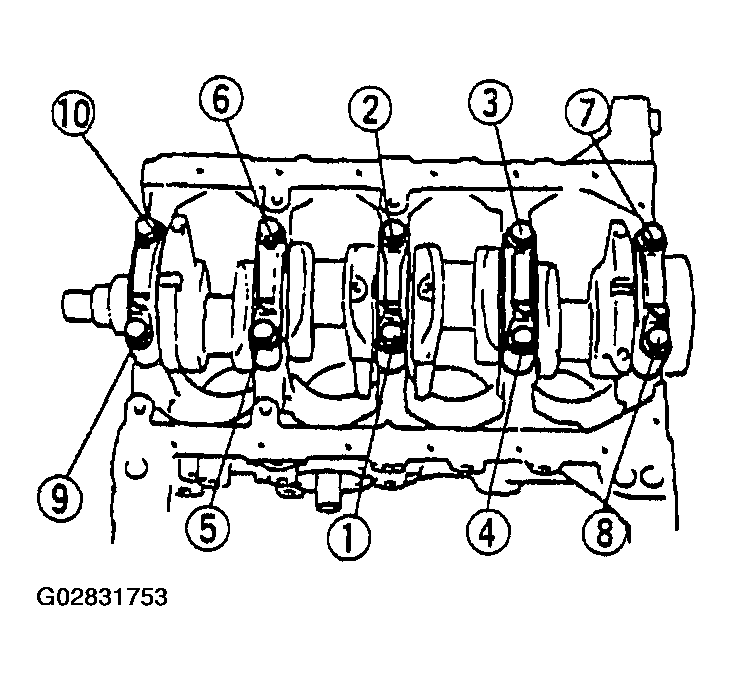

    Fig 2: Main Bearing Cap Bolt Tightening Sequence
    G02831753Courtesy of MAZDA MOTORS CORP.
