Water Pump Assembly Note

  1. Verify that the rubber seal is securely fixed onto the water pump.

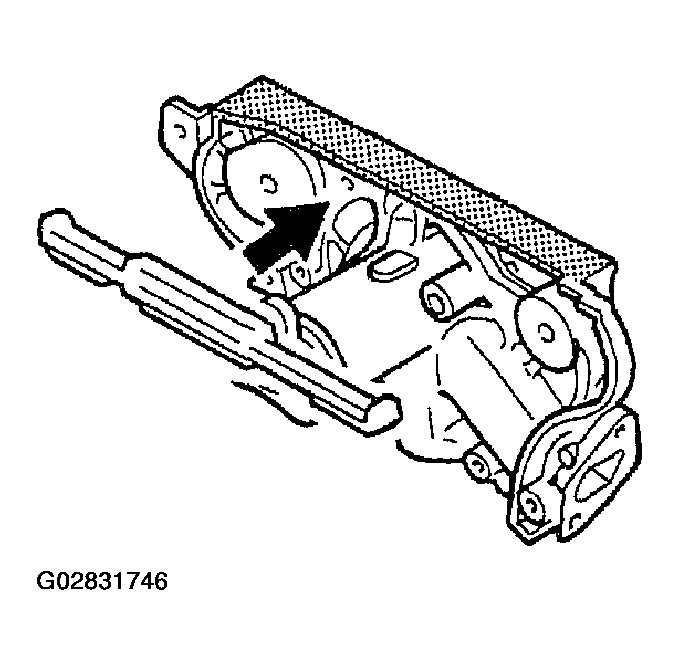

    Fig 1: Installing Rubber Seal To Water Pump
    G02831746Courtesy of MAZDA MOTORS CORP.
  2. If not as specified, remove the rubber seal and reinstall it with the bonding agent.
