Cylinder Block Disassembly/Assembly (I): Notes

  1. Disassemble in the order indicated in the figure.

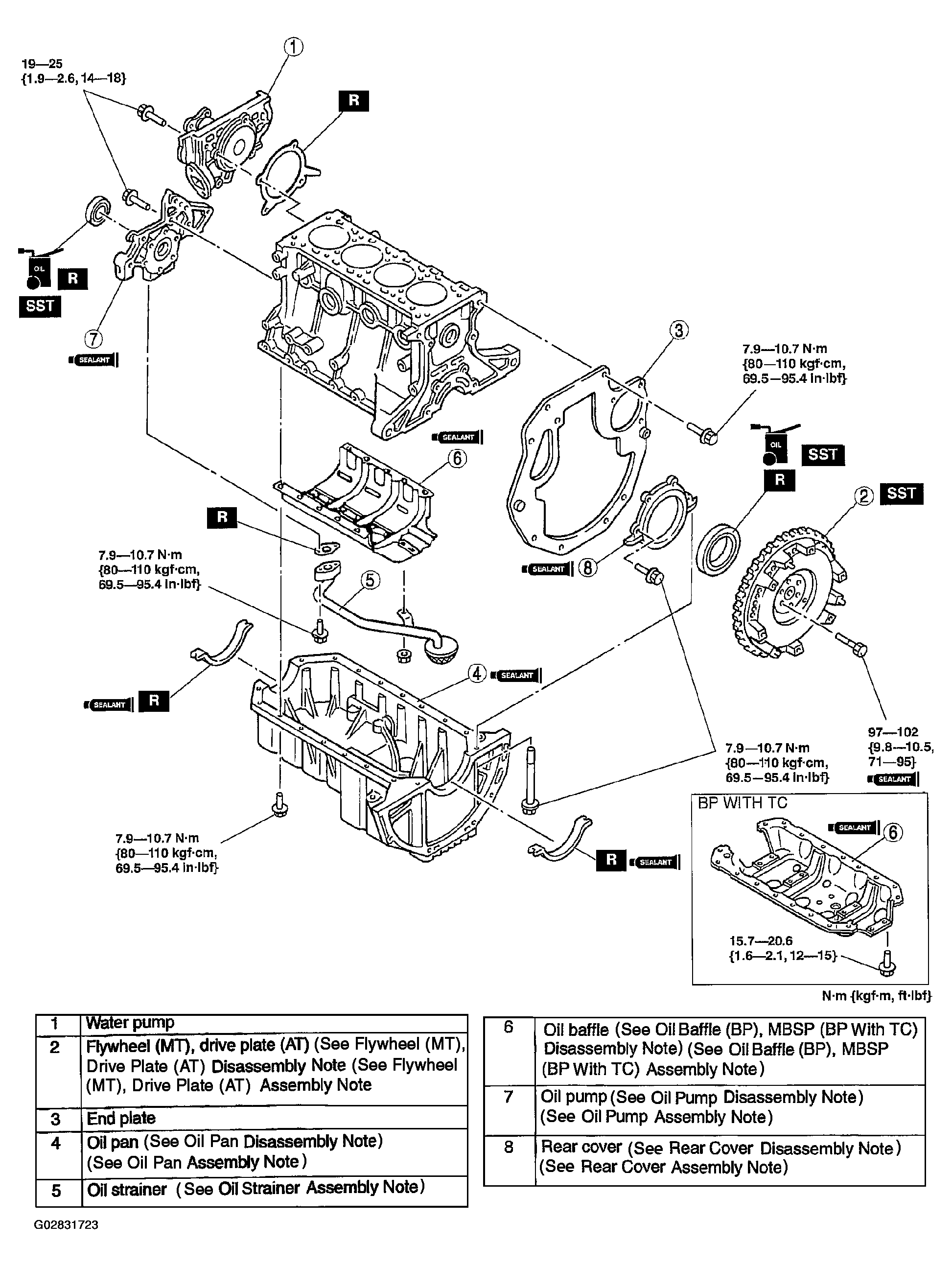

    Fig 1: Disassembling/Assembling Cylinder Block
    G02831723Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
