MBSP Assembly Note (BP With TC)

  1. Apply silicone sealant to the MBSP along the inside of the bolt holes, and install within five minutes.

    Thickness

    1. 2.5-3.5 mm {0.099-0.137 in}

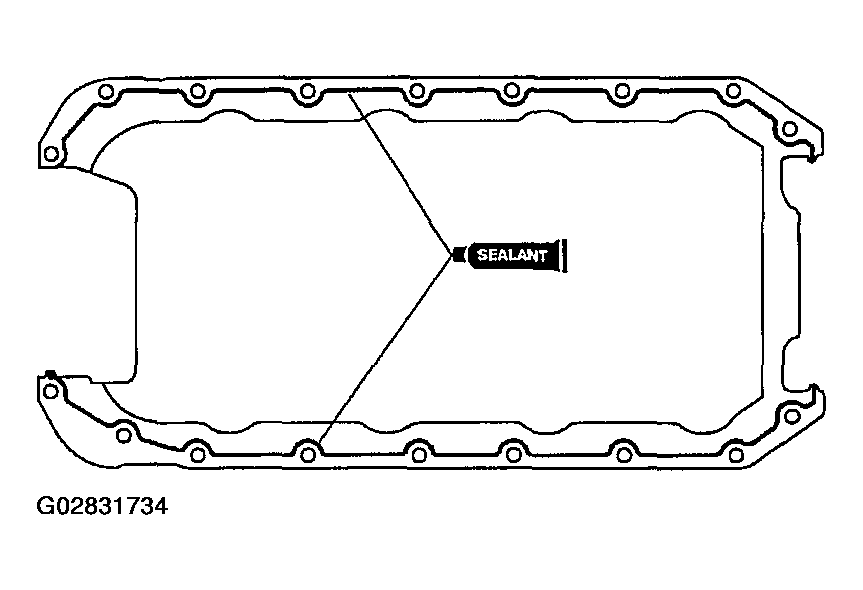

      Fig 1: Applying Silicone Sealant To MBSP
      G02831734Courtesy of MAZDA MOTORS CORP.

  2. Tighten the MBSP bolts in two or three steps in the order shown.

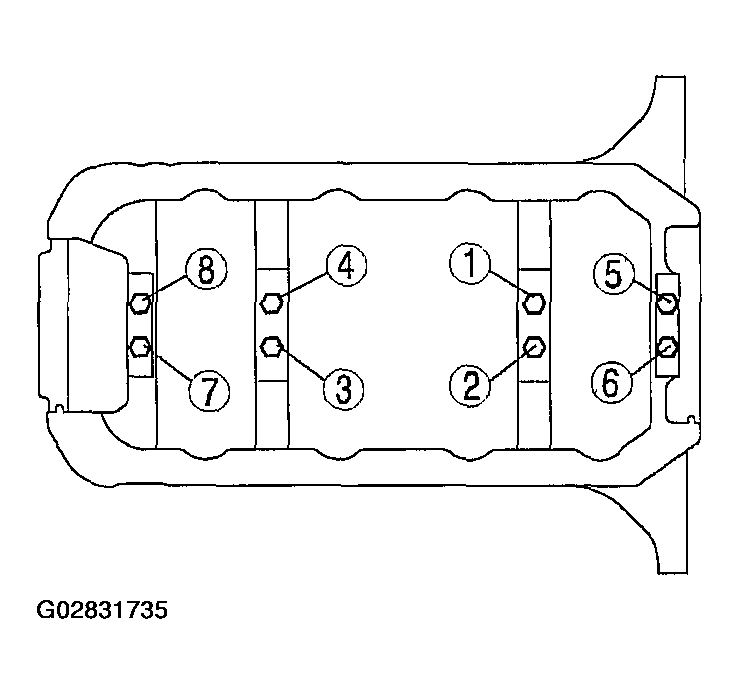

    Fig 2: MBSP Bolt Tightening Sequence
    G02831735Courtesy of MAZDA MOTORS CORP.
