Exhaust System Removal/Installation [BP With TC]: Notes

WARNING:

A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until all components are cool before removing the exhaust system.

Disconnect the negative battery cable.
Remove the under cover.
Remove the air pipe No. 2 and the air hose No. 4. See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .
Drain the engine coolant. See COOLING SYSTEM .
Remove in the order indicated in Fig 1 and Fig 2.
Install in the reverse order of removal.

Step 1

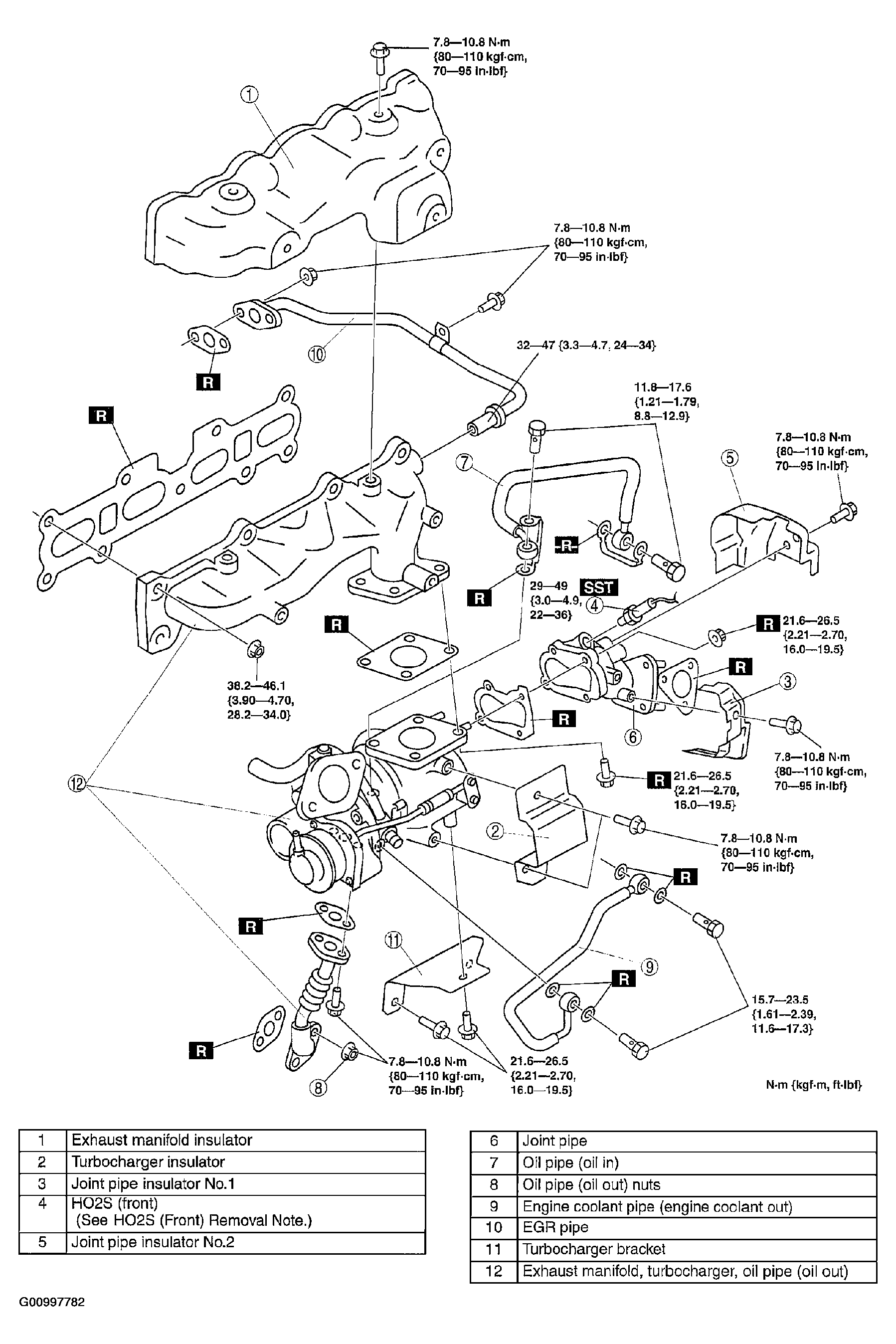

Fig 1: Removing/Installing Exhaust System [BP With TC] - Step 1

Courtesy of MAZDA MOTORS CORP.

Step 2

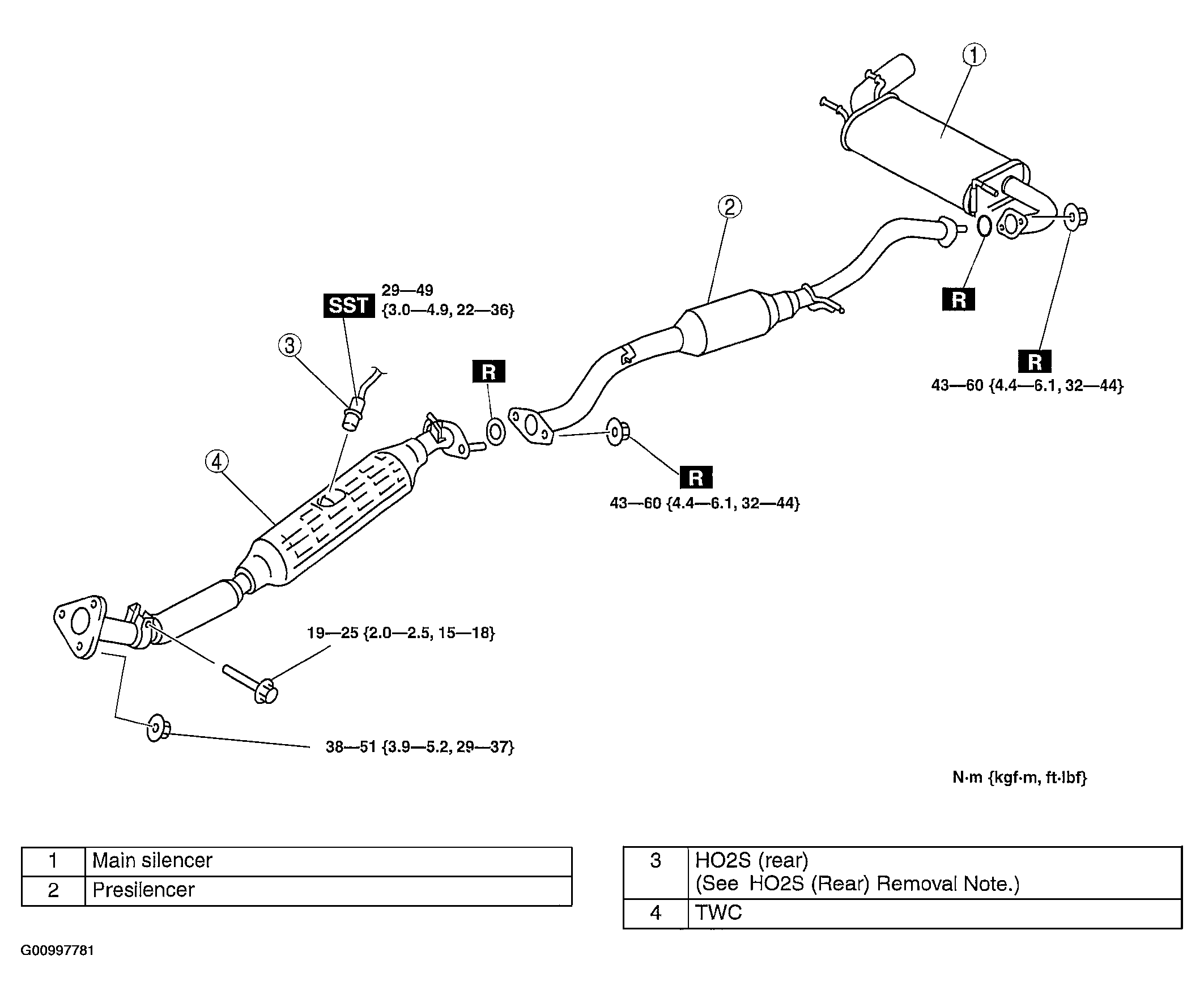

Fig 2: Removing/Installing Exhaust System [BP With TC] - Step 2

Courtesy of MAZDA MOTORS CORP.
