Front Fog Light Switch Connector End View

Fig 1: Front Fog Light Switch Connector End View
G00997776Courtesy of MAZDA MOTORS CORP.

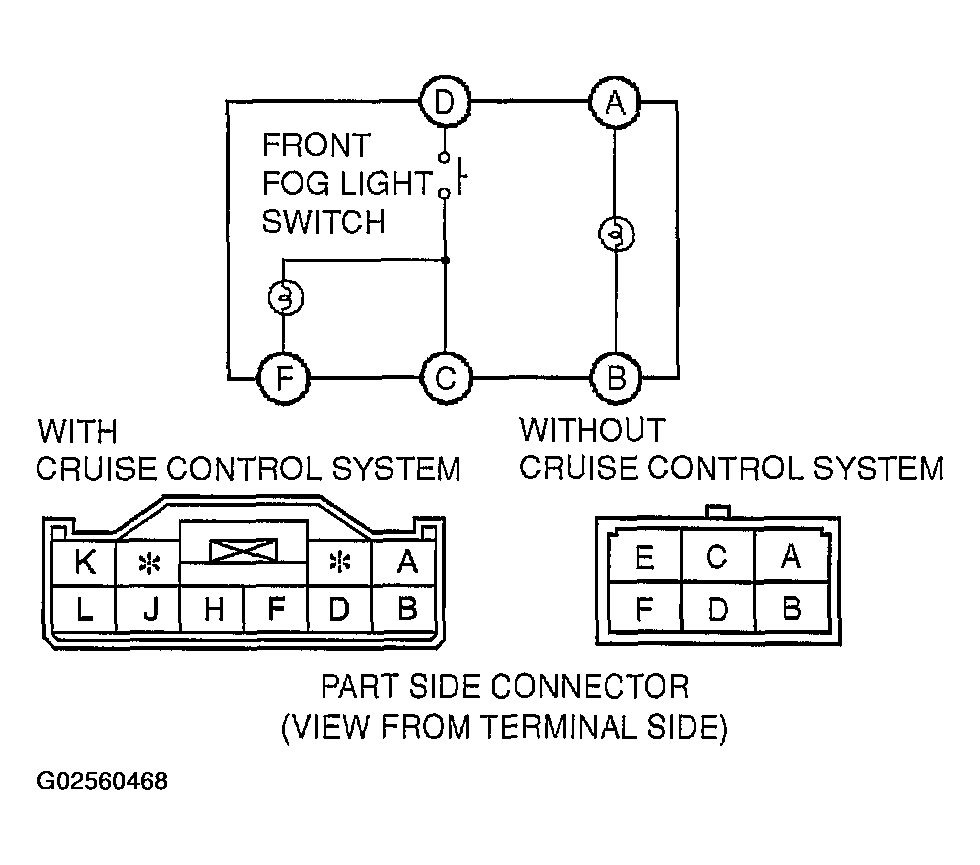

Fig 1: Front Fog Light Switch Connector End View
G02560468Courtesy of MAZDA MOTORS CORP.
