Fail-Safe Function

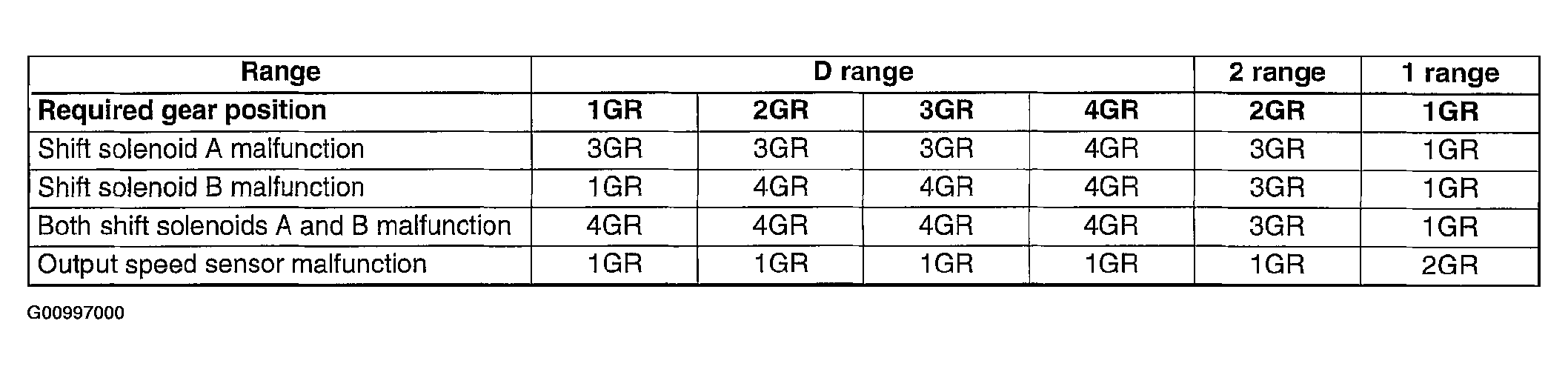

Fig 1: Diagnostic Procedure: No. 7 - No Shift
G00997000Courtesy of MAZDA MOTORS CORP.
NOTE:
  • If the malfunction remains, inspect related Service Bulletins and perform repair or diagnosis.
    • If vehicle is repaired, troubleshooting completed.
    • If vehicle is not repaired or additional diagnostic information is not available, replace TCM.
