Symptom Troubleshooting [Automatic Transmission]: Foreword

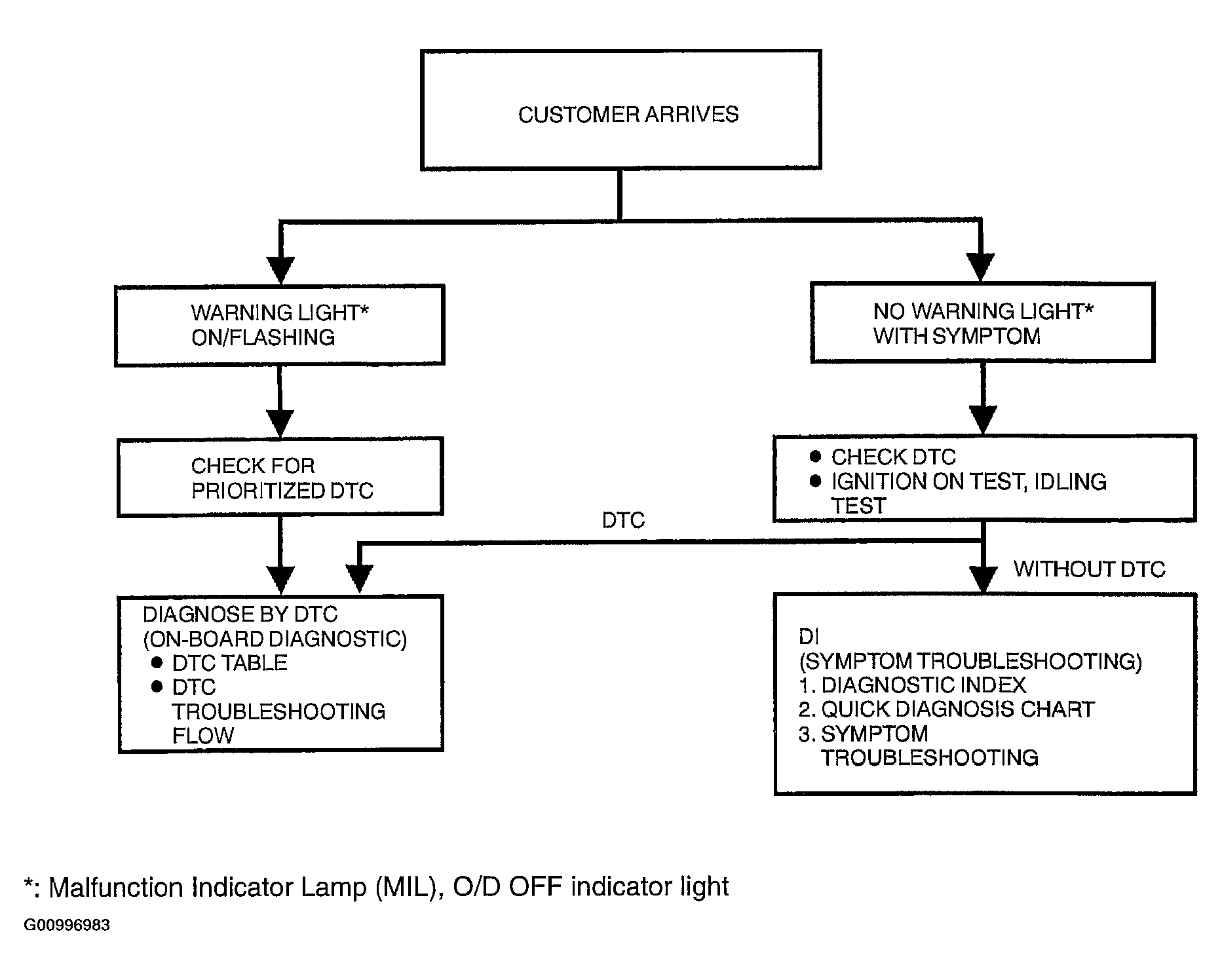

- When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication, O/D OFF indicator light flash, and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.
- If a DTC exists, diagnose the applicable DTC inspection. See DIAGNOSTIC TROUBLE CODES TABLE .
- If no DTC exists, MIL does not illuminate, and O/D OFF indicator light flash, diagnose the applicable symptom troubleshooting. See AUTOMATIC TRANSMISSION SYMPTOM TROUBLESHOOTING .
