Symptom Troubleshooting [Automatic Transmission]
>>
Automatic Transmission Control System Wiring Diagram
Automatic Transmission Control System Wiring Diagram

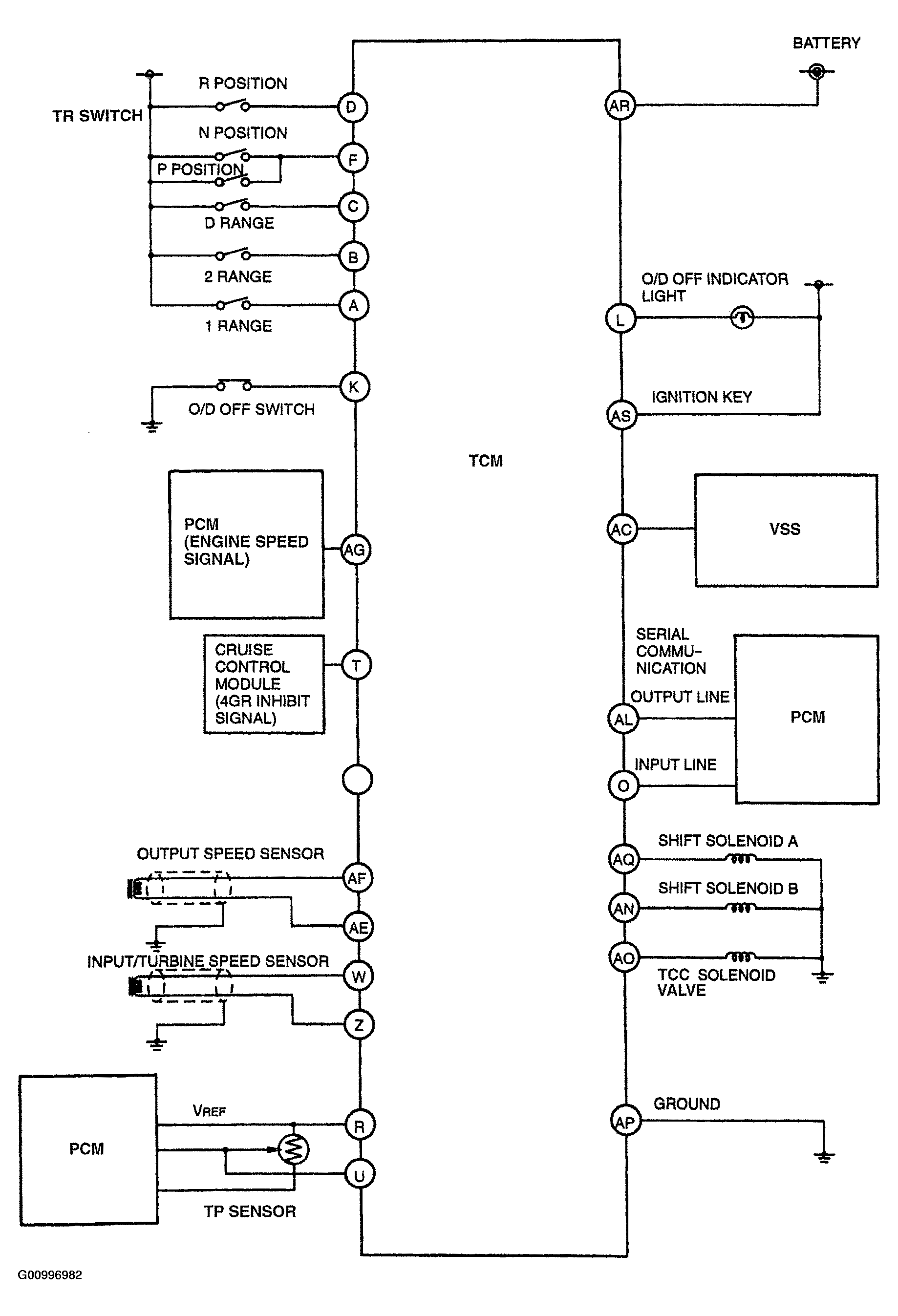

Fig 1: Automatic Transmission Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
