DTC P0720: Output Speed Sensor Circuit Malfunction: Notes

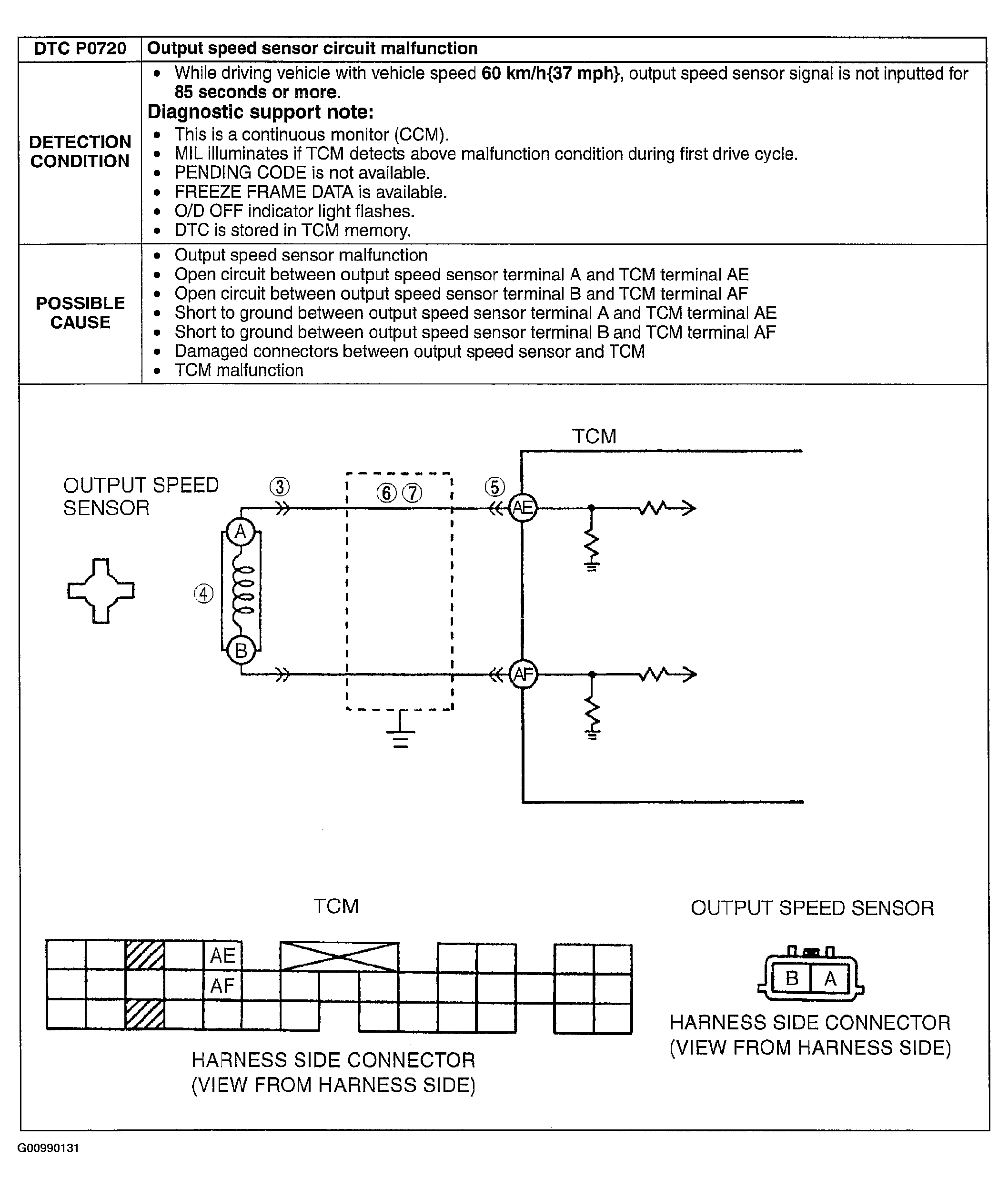

Fig 1: Description, Detection Condition & Possible Cause - DTC P0720

G00990131

Courtesy of MAZDA MOTORS CORP.
