DTC P0223: Throttle Position (TP) Sensor Circuit Open
>>
Notes
DTC P0223: Throttle Position (TP) Sensor Circuit Open: Notes

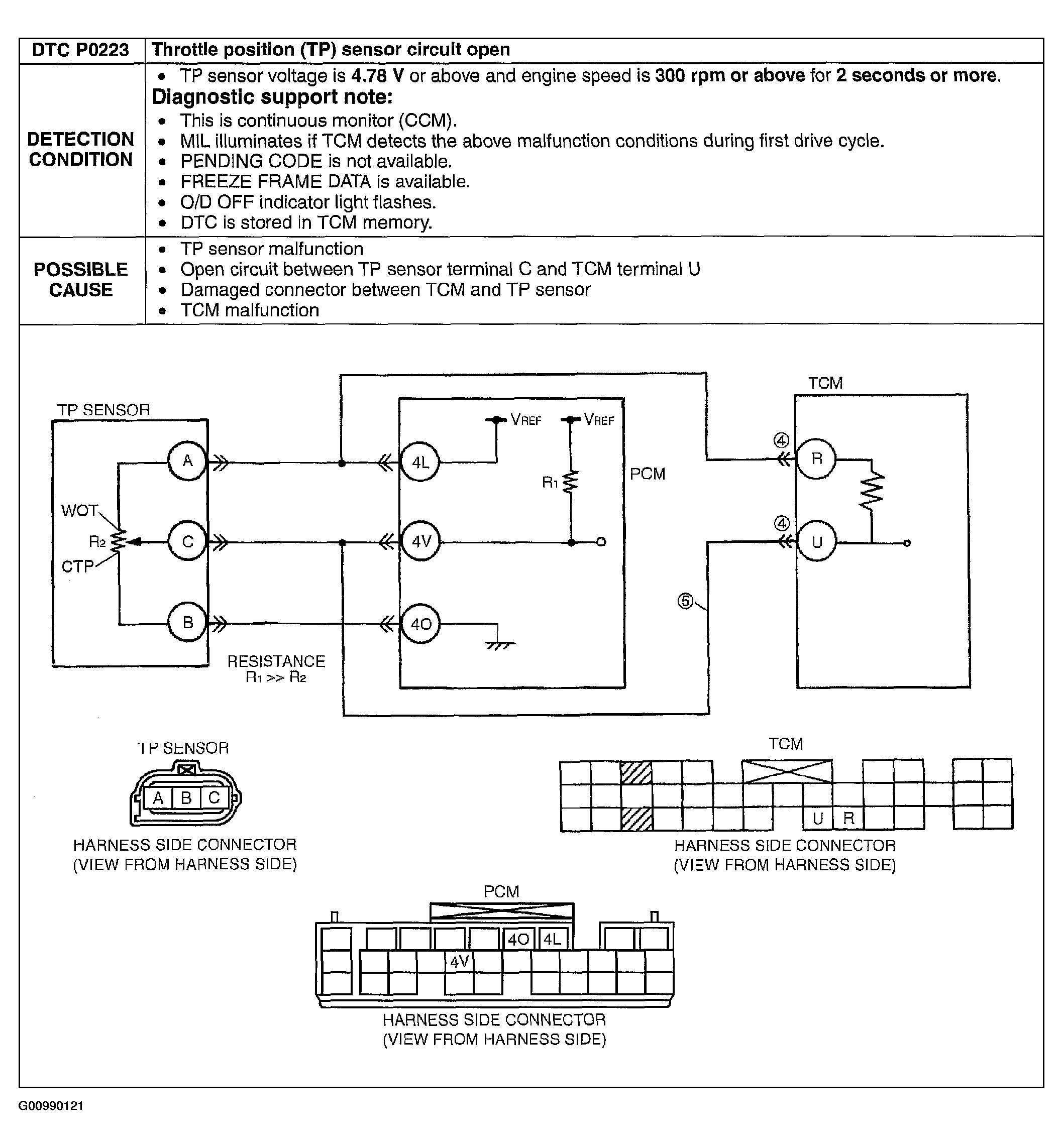

Fig 1: Description, Detection Condition & Possible Cause - DTC P0223
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
