DTC P0222: Throttle Position (TP) Sensor Circuit Short
>>
Notes
DTC P0222: Throttle Position (TP) Sensor Circuit Short: Notes

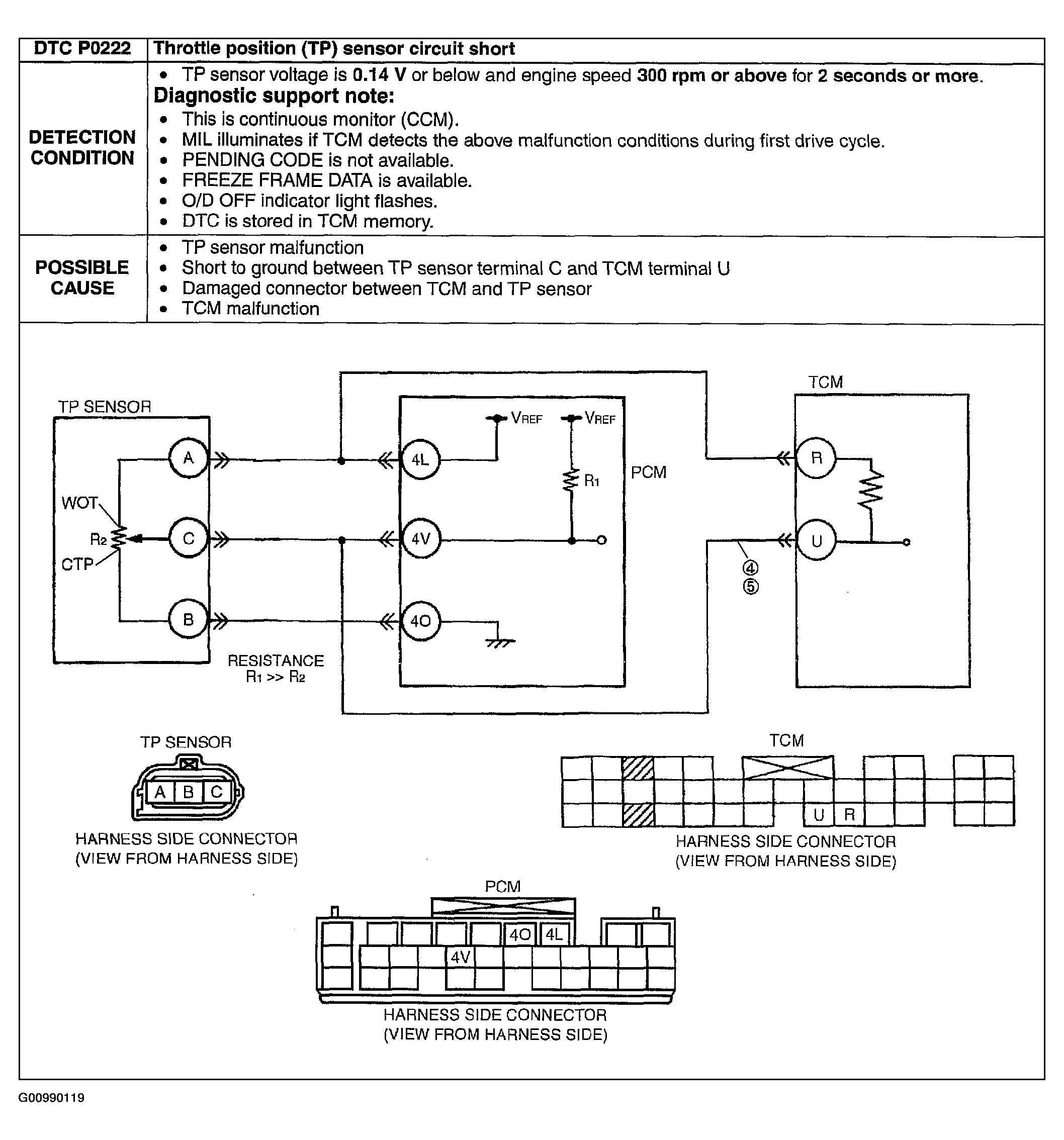

Fig 1: Description, Detection Condition & Possible Cause - DTC P0222
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
