P Position Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the rear console.
  3. Remove the screws and lift up the indicator panel.
  4. Disconnect the P position switch connector.

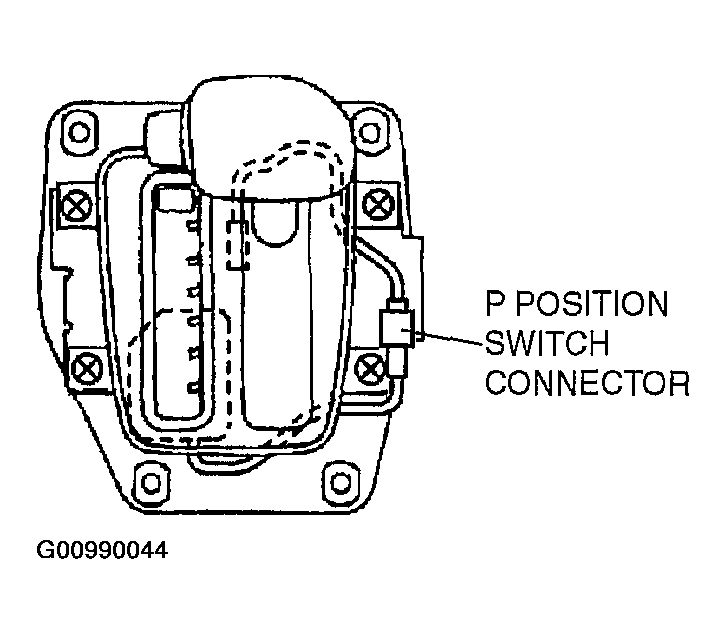

    Fig 1: Locating P Position Switch Connector
    G00990044Courtesy of MAZDA MOTORS CORP.
  5. Inspect for continuity between the terminals A and B.
    • If not as specified, replace the P position switch.
    Fig 2: P Position Switch Continuity Table
    G00990045Courtesy of MAZDA MOTORS CORP.
    Fig 3: Identifying P Position Switch Connector Terminals
    G00990046Courtesy of MAZDA MOTORS CORP.
  6. Connect the P position switch connector.
  7. Adjust the indicator panel. Install the screws in the order shown in the figure.
    1. Tightening torque 1.5-2.4 N.m {16-24 kgf.cm, 14-21 in.lbf}
    Fig 4: Tightening Order Of Indicator Panel Screws
    G00990047Courtesy of MAZDA MOTORS CORP.
  8. Install the rear console.
  9. Connect the negative battery cable.
