Steering Lock Mounting Bolts and Bracket Disassembly Note

  1. Use a chisel to make a groove in the heads of the steering lock mounting bolts. Remove the bolts with a screwdriver. Remove the steering lock component.

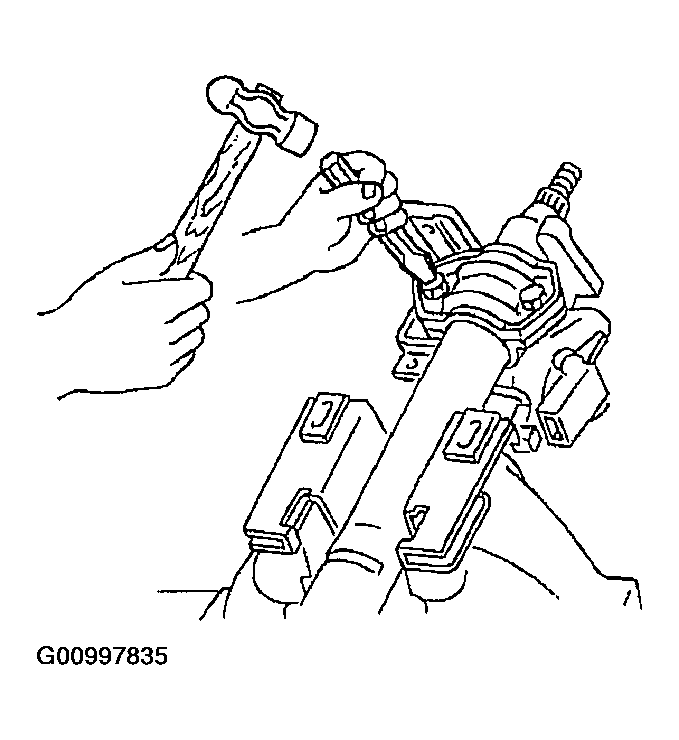

    Fig 1: Making Grooves In Heads Of Steering Lock Mounting Bolts
    G00997835Courtesy of MAZDA MOTORS CORP.
