Tie-rod End Boot Disassembly Note

  1. Secure the tie-rod end in a vise.
  2. Place a chisel against the boot and hold it at the angle shown.
  3. Remove the boot by tapping it with a hammer.

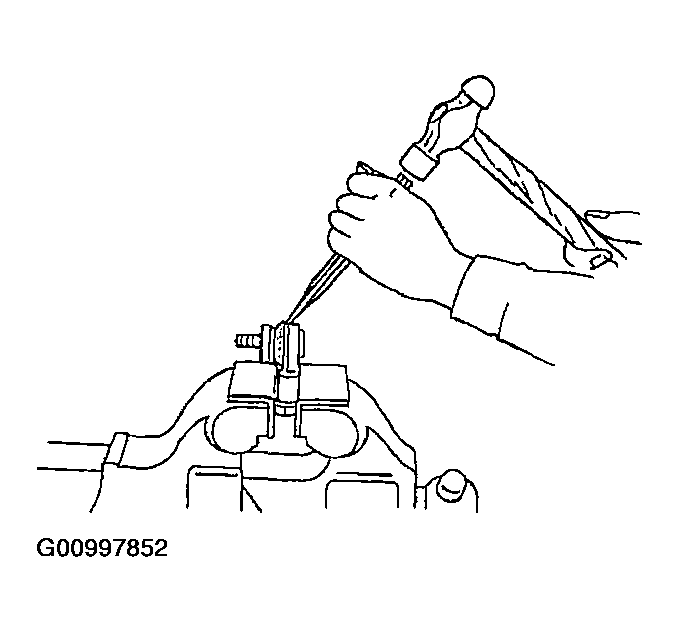

    Fig 1: Removing Tie-Rod End Boot
    G00997852Courtesy of MAZDA MOTORS CORP.
