Oil Seal, Inner Guide Disassembly Note

  1. Set the SSTs  into the valve side.
  2. Press out the oil seal and inner guide.

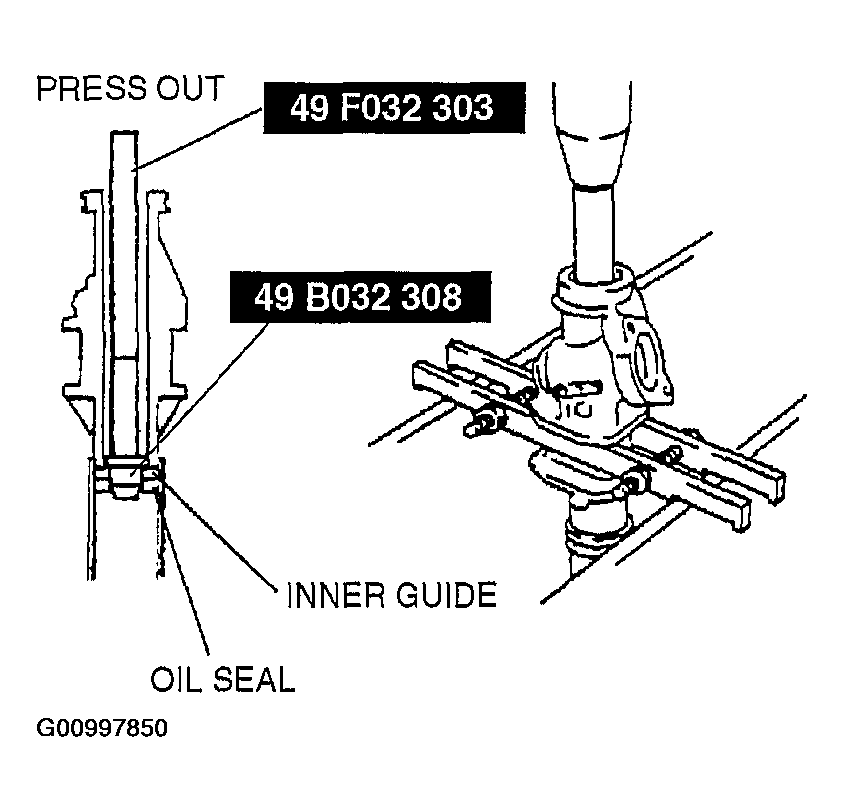

    Fig 1: Pressing Out Oil Seal & Inner Guide
    G00997850Courtesy of MAZDA MOTORS CORP.
