Power Steering Oil Pump Removal/Installation

  1. Remove the air cleaner, MAF sensor, air hose No.2, air hose No.1, air pipe No.1, air bypass valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
  2. Remove the cooling fan. (See COOLING FAN MOTOR ).
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. Adjust the drive belt. (See DRIVE BELTS .)

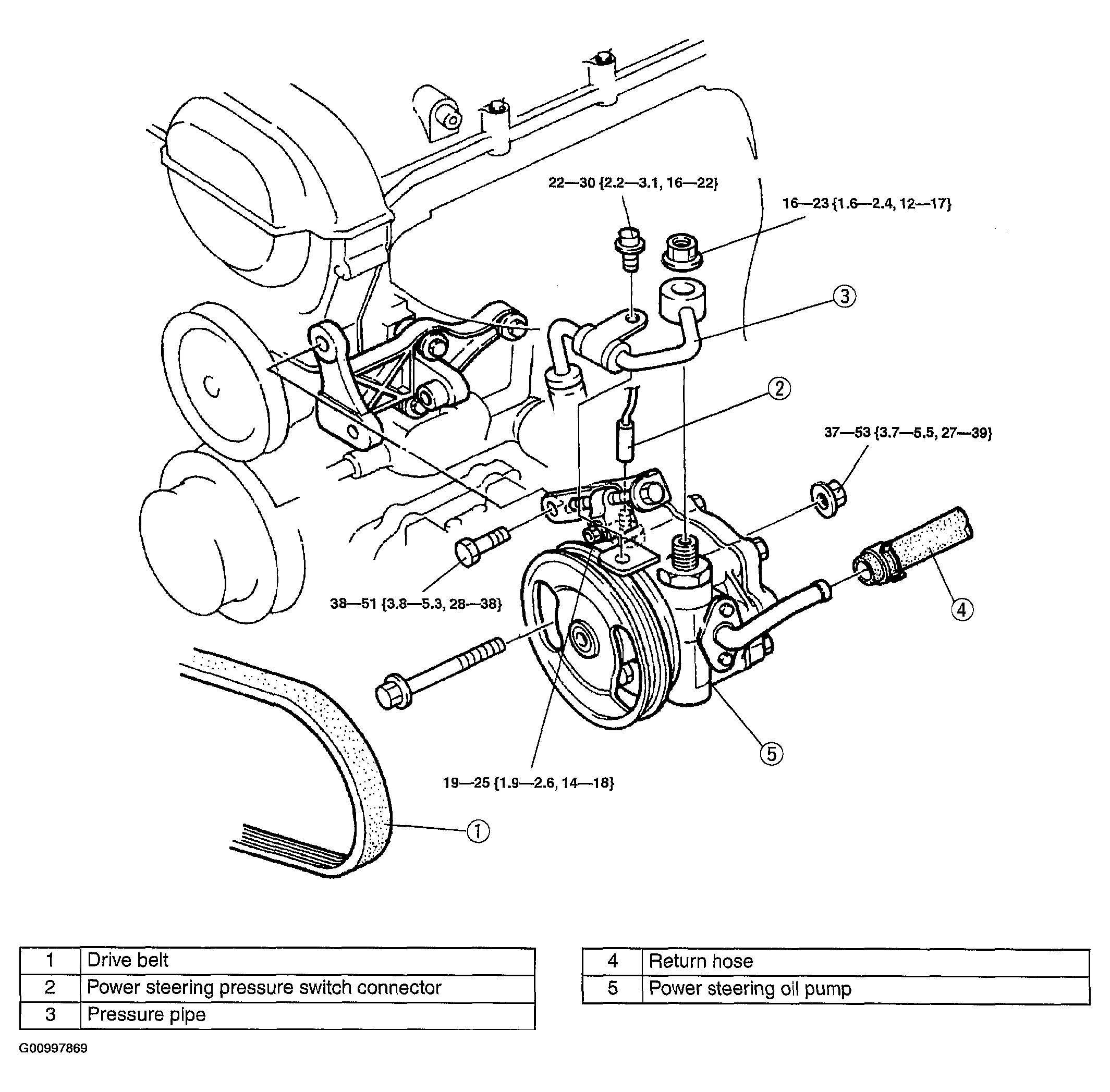

    Fig 1: Removing/Installing Power Steering Oil Pump
    G00997869Courtesy of MAZDA MOTORS CORP.
