Seat Belt Removal/Installation

WARNING:
  • Handling the front seat belt (pre-tensioner seat belt) improperly can accidentally deploy the pre-tensioner, which may seriously injure you. Read SERVICE WARNINGS before handling the front seat belt. See AIR BAG RESTRAINT SYSTEMS article.
CAUTION:
  • The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Disconnect the negative battery cable.
  2. Remove the quarter trim. (See QUARTER TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    Fig 1: Removing/Installing Sequence Order Table Of Seat Belt
    G00989020Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

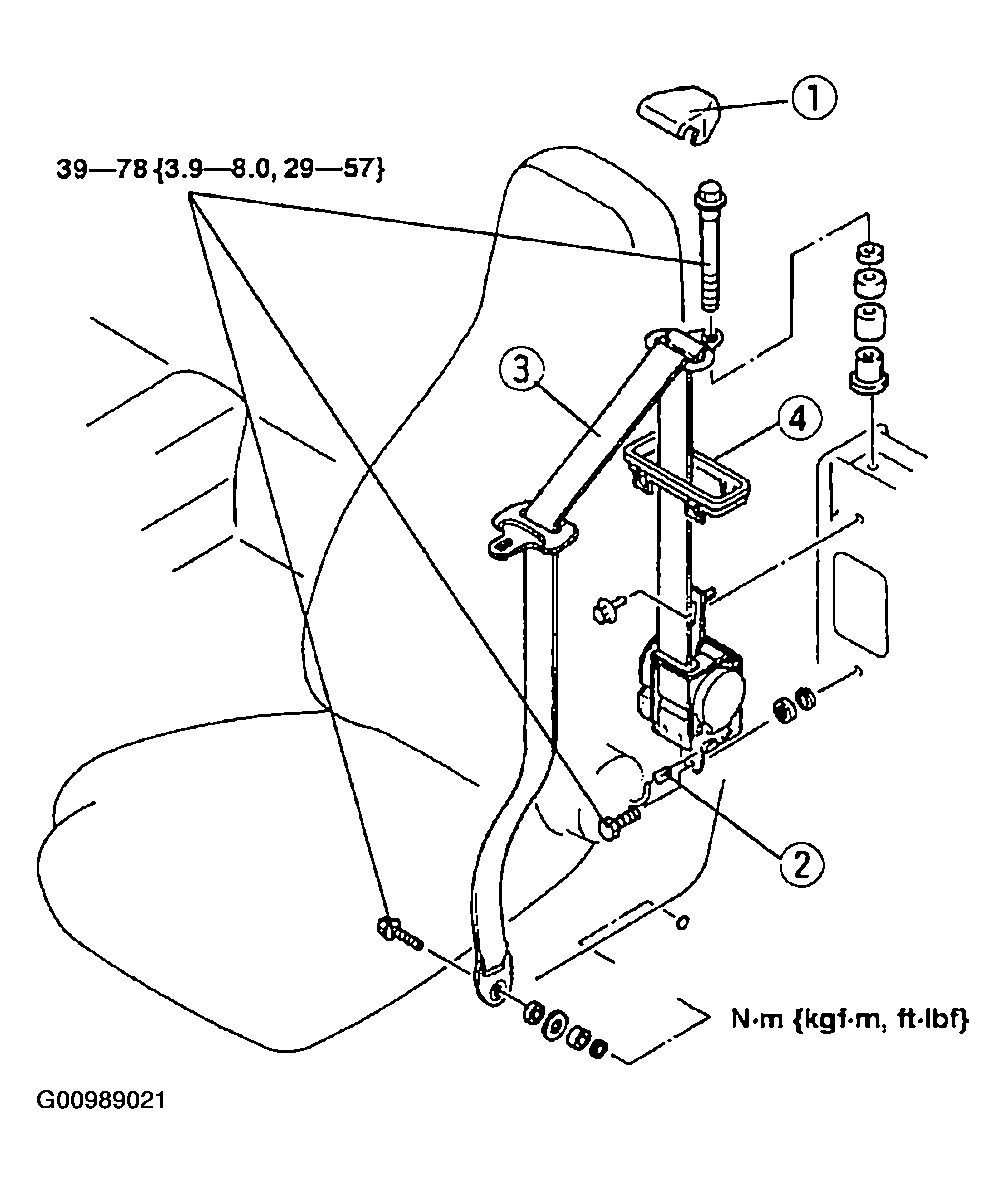

    Fig 2: Removing/Installing Seat Belt
    G00989021Courtesy of MAZDA MOTORS CORP.
