Seat Belt Inspection: ELR

CAUTION:
  • If the load limiter mechanism operates, the belt will no longer withdraw and retract normally. Replace the belt if the load limiter mechanism operates.
  1. Verify that the belt can be pulled out smoothly, and that it moves smoothly when wound.
  2. Verify that the retractor locks when the belt is quickly pulled.
  3. Remove the retractor. (See SEAT BELT REMOVAL/INSTALLATION .)
  4. Hold the retractor as it would be installed.
  5. Slowly incline the retractor while pulling out the belt.

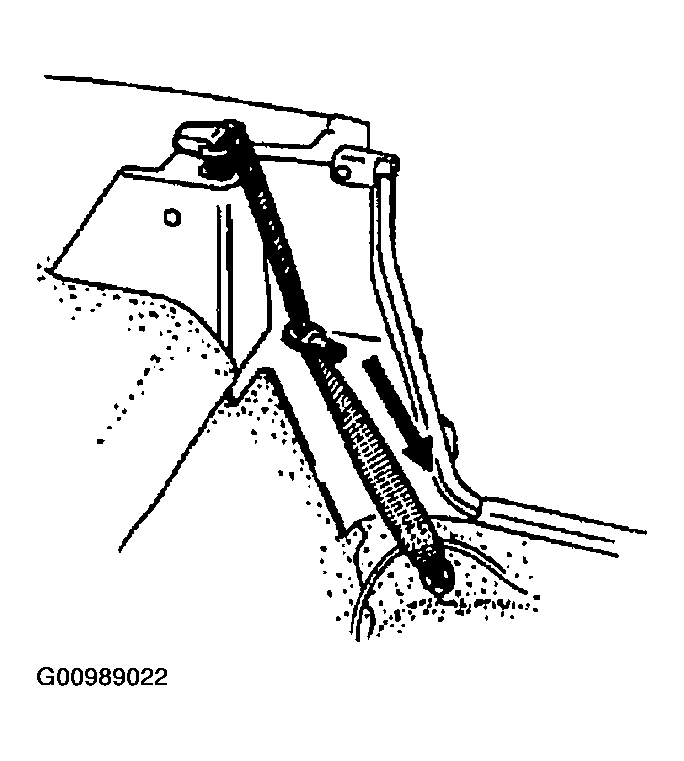

    Fig 1: Locating Pulling Direction Of Seat Belt
    G00989022Courtesy of MAZDA MOTORS CORP.
  6. Verify that the retractor locks at approximately 30° inclination.
    • If not as specified, replace the seat belt.

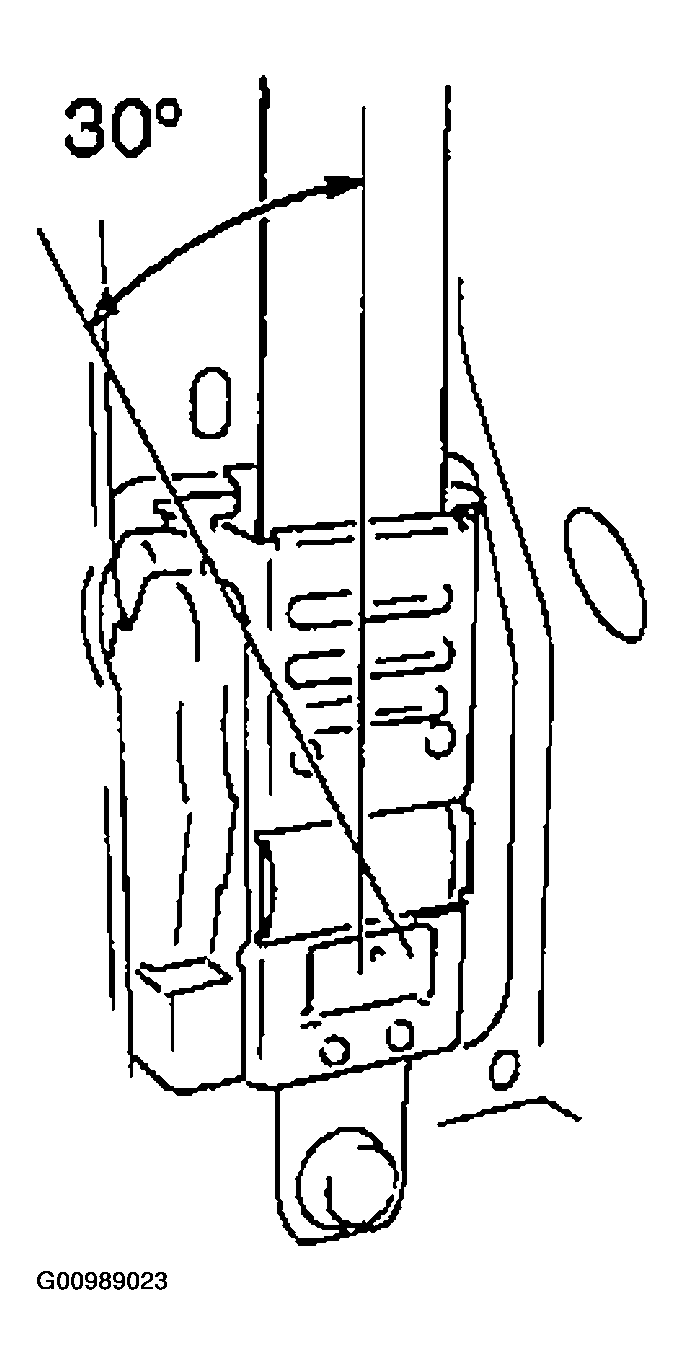

    Fig 2: Locating Retractor Inclination Angle
    G00989023Courtesy of MAZDA MOTORS CORP.
