Child Restraint Seat Anchor Removal/Installation

  1. Remove the bolts.
  2. Remove the child restraint seat anchors.
  3. Install in the reverse order of removal.

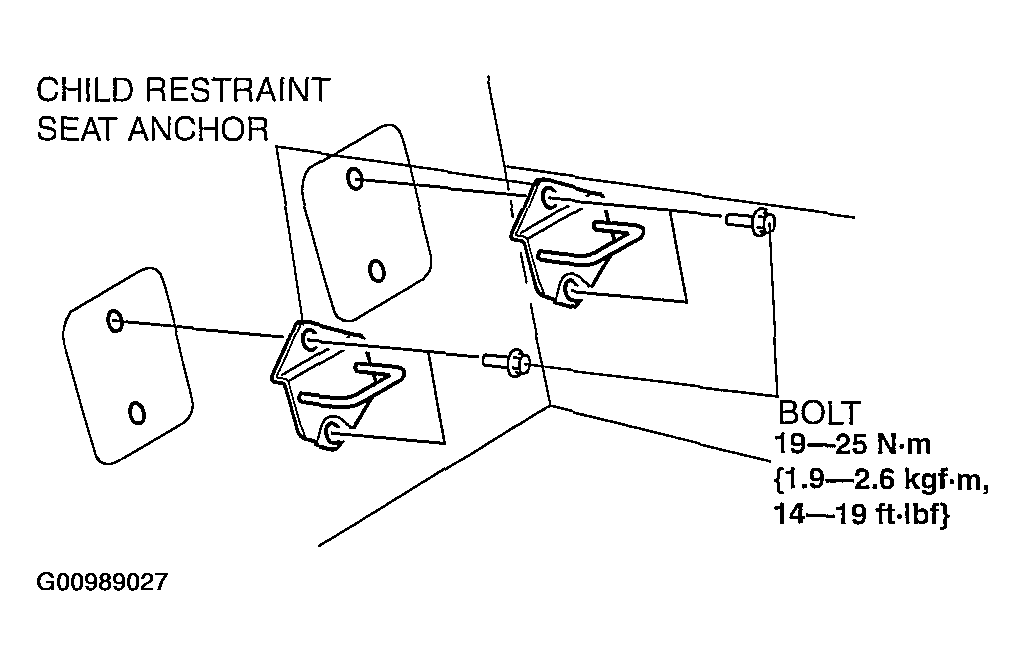

    Fig 1: Removing/Installing Child Restraint Seat Anchor
    G00989027Courtesy of MAZDA MOTORS CORP.
