Pilot Bearing Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install a new pilot bearing using a suitable pipe.
    1. Depth 0-0.4 mm {0-0.016 in}

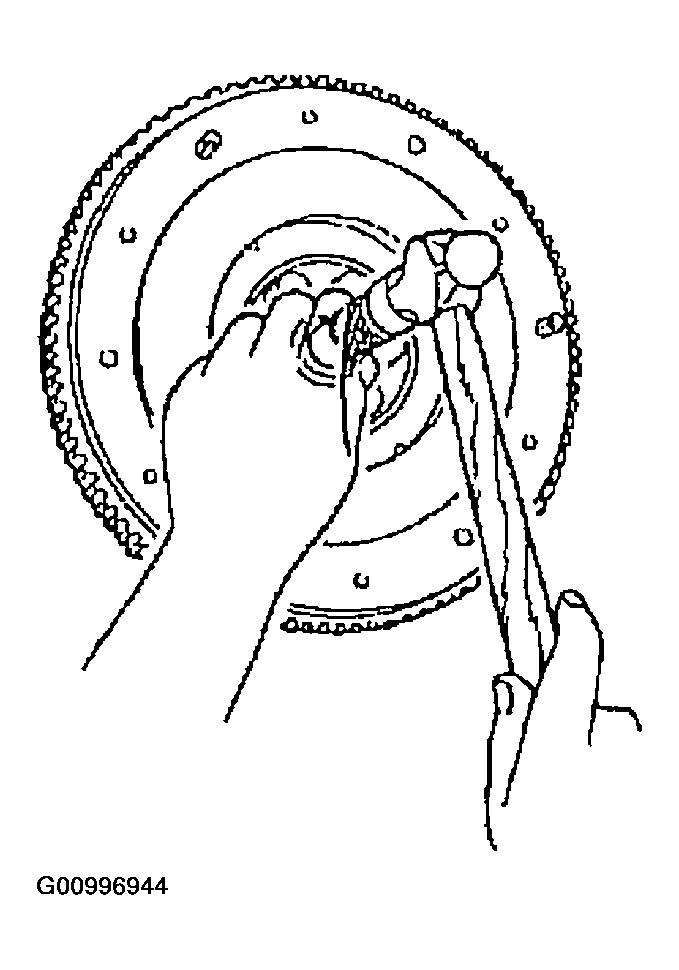

    Fig 1: Installing Flywheel Pilot Bearing
    G00996944Courtesy of MAZDA MOTORS CORP.
