Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • The clutch release cylinder can be removed from the transmission with the clutch pipe connected.
  1. Remove in the order indicated in the figure .
  2. Install in the reverse order of removal.

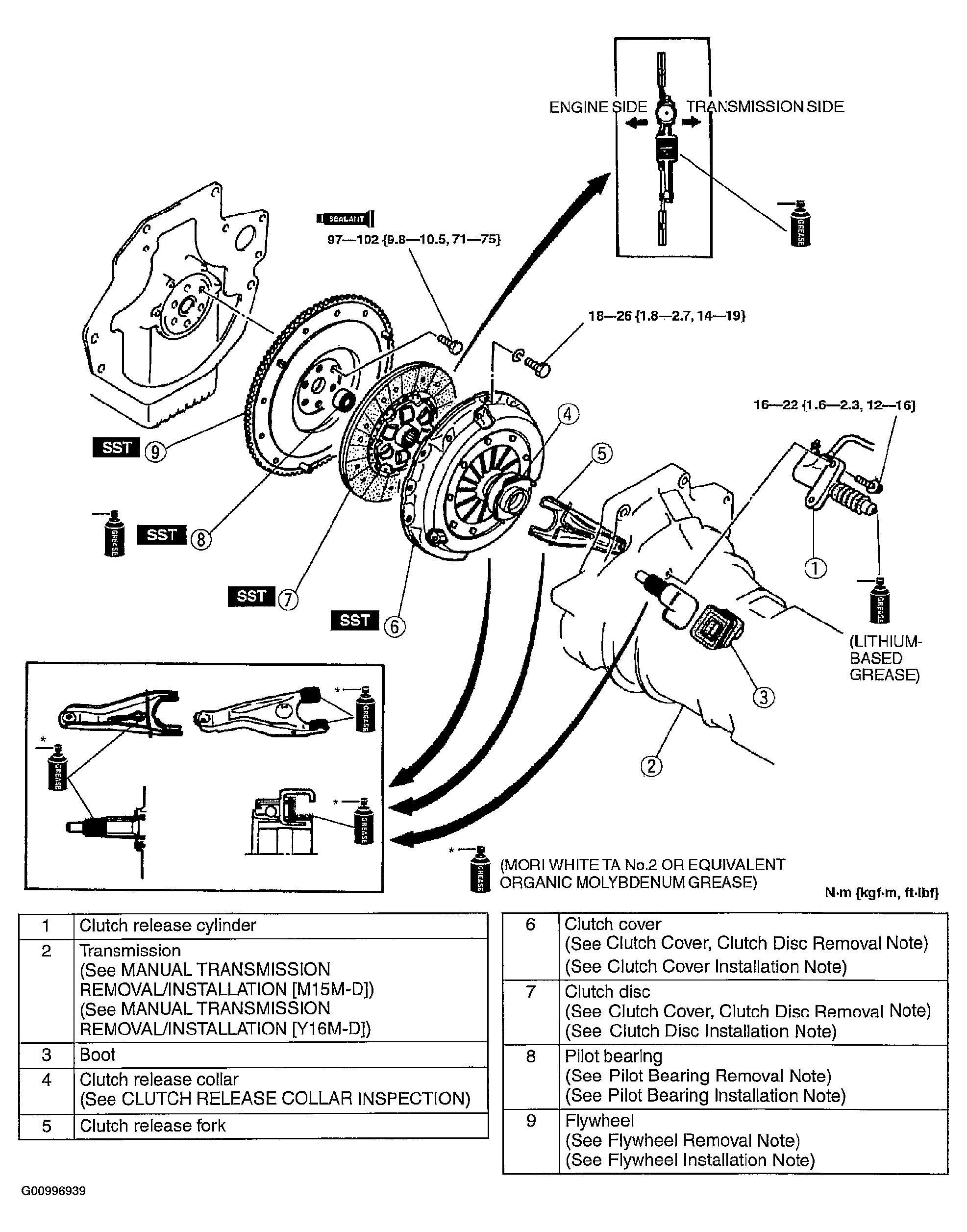

    Fig 1: Removing/Installing Clutch Unit
    G00996939Courtesy of MAZDA MOTORS CORP.
