Flywheel Installation Note
WARNING: This page is about a different variant/trim than selected.
- Wipe the bolts clean, then apply sealant to the bolt threads.
- Install the flywheel, and secure it using the SST.
Courtesy of MAZDA MOTORS CORP.

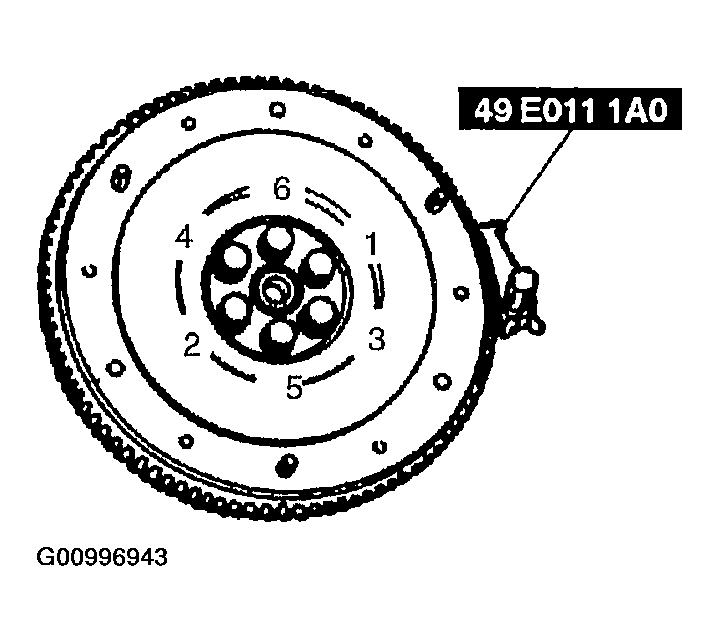

- Tighten the bolts in the pattern shown.
- Tightening torque 97-102 N.m {9.8-10.5 kgf.m, 71-75 ft.lbf}
