Clutch Disc Installation Note
WARNING: This page is about a different variant/trim than selected.
- Clean the clutch disc splines and main drive gear splines, and apply Mori White TA No.2 or equivalent organic molybdenum grease.

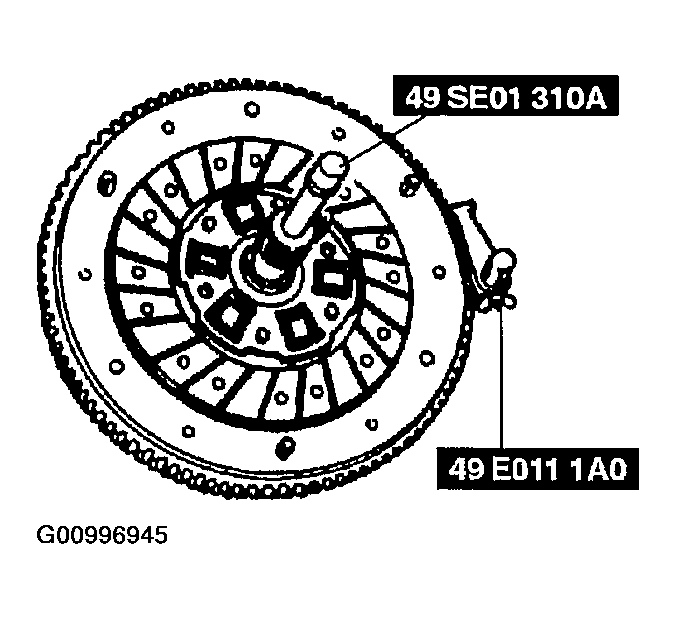

- Hold the clutch disc in position using the SST
.
Courtesy of MAZDA MOTORS CORP.
