Spring Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Place the clutch pedal component in a vise.
  2. Pry the spring off the clutch pedal as shown in the figure.

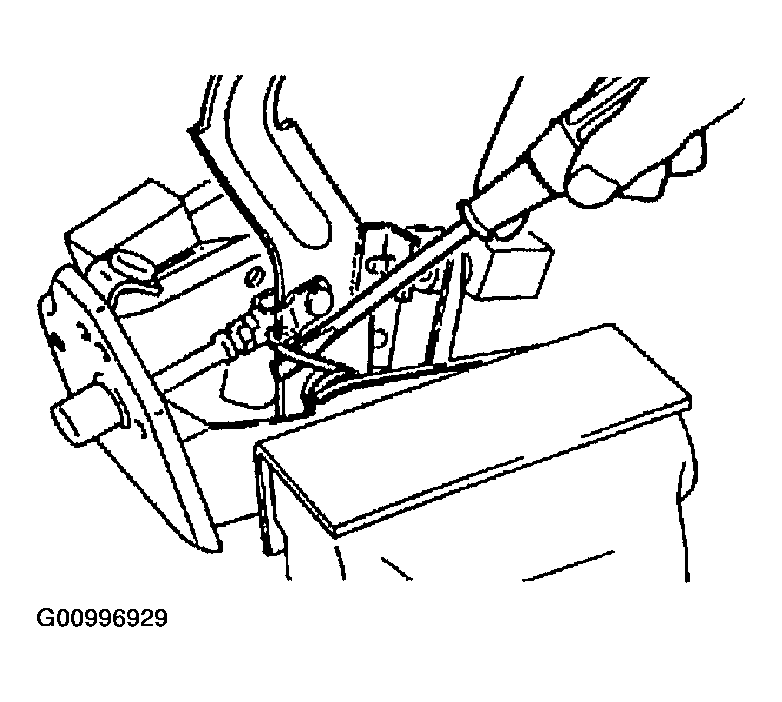

    Fig 1: Prying Spring Off From Clutch Pedal
    G00996929Courtesy of MAZDA MOTORS CORP.
