Spring Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Place the clutch pedal component in a vise.

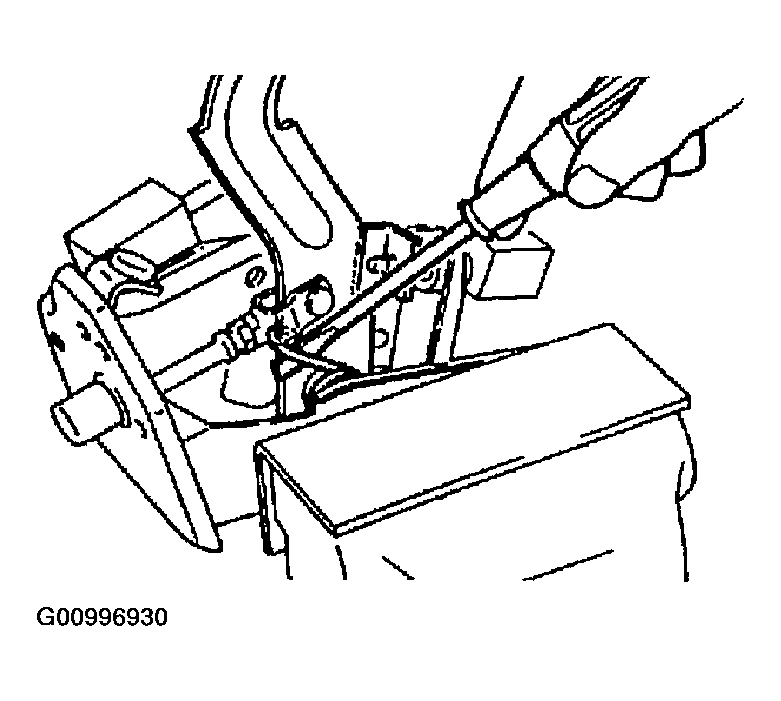

    Fig 1: Installing Spring Onto Clutch Pedal
    G00996930Courtesy of MAZDA MOTORS CORP.
  2. Install the spring onto the clutch pedal as shown in the figure.
  3. Adjust the clutch pedal height and free play after installation.
