Clutch Master Cylinder Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble in the order indicated in the table.
    WARNING:
    1. Applying compressed air to the cylinder component can make the contents suddenly pop out, possibly causing injury. Hold a rag over the cylinder opening when using compressed air.
  2. Wipe all parts, and use compressed air to clean all ports, passages, and inner parts.
  3. Assemble in the reverse order of disassembly.

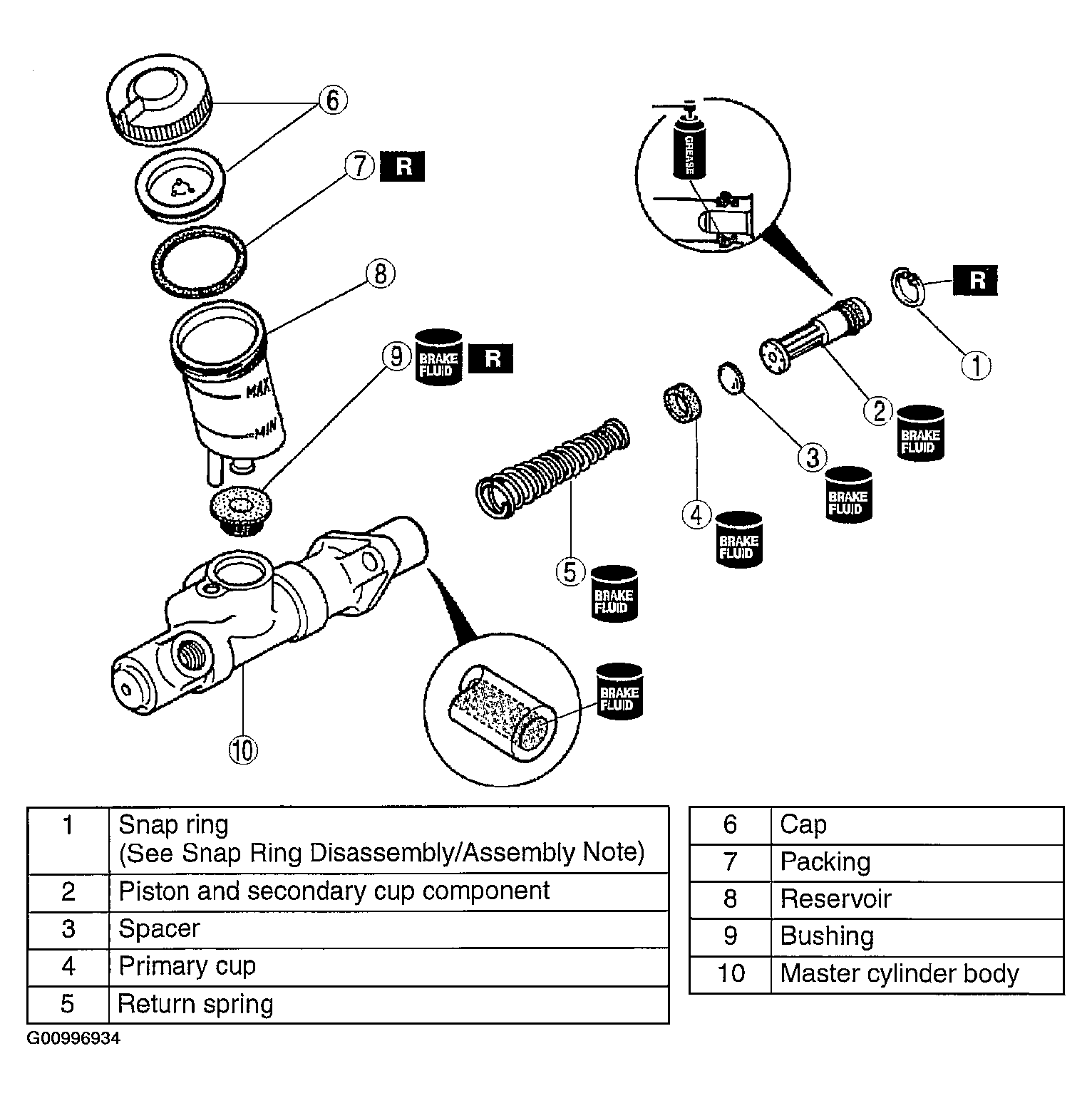

    Fig 1: Disassembling/Assembling Clutch Master Cylinder - BP
    G00996934Courtesy of MAZDA MOTORS CORP.

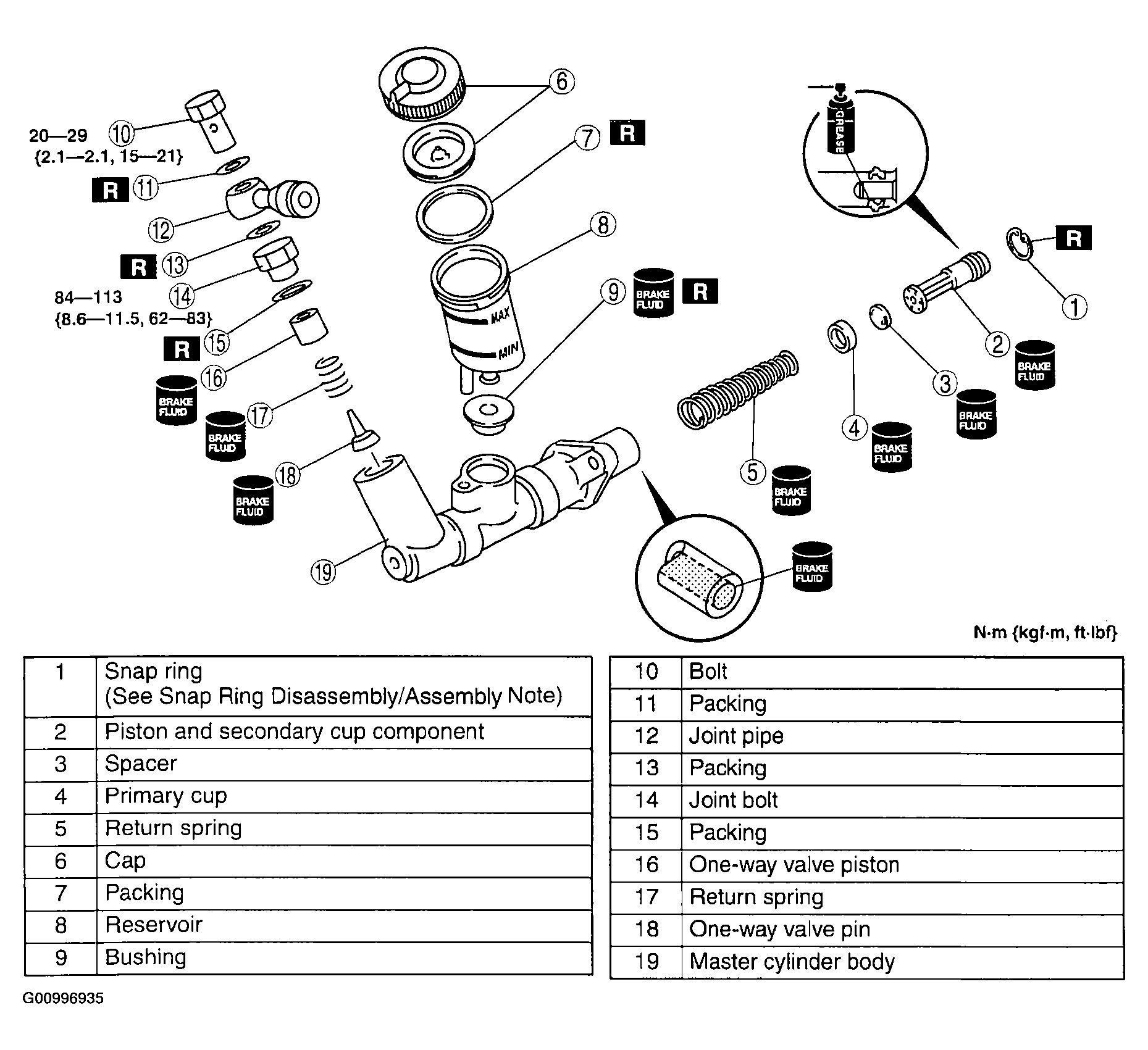

    Fig 2: Disassembling/Assembling Clutch Master Cylinder - BP With TC
    G00996935Courtesy of MAZDA MOTORS CORP.
