Locknut (Companion Flange) Disassembly Note

WARNING: This page is about a different car, the 2002 Mazda MX-5 Miata and 2001 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the companion flange using the SST  and remove the locknut.

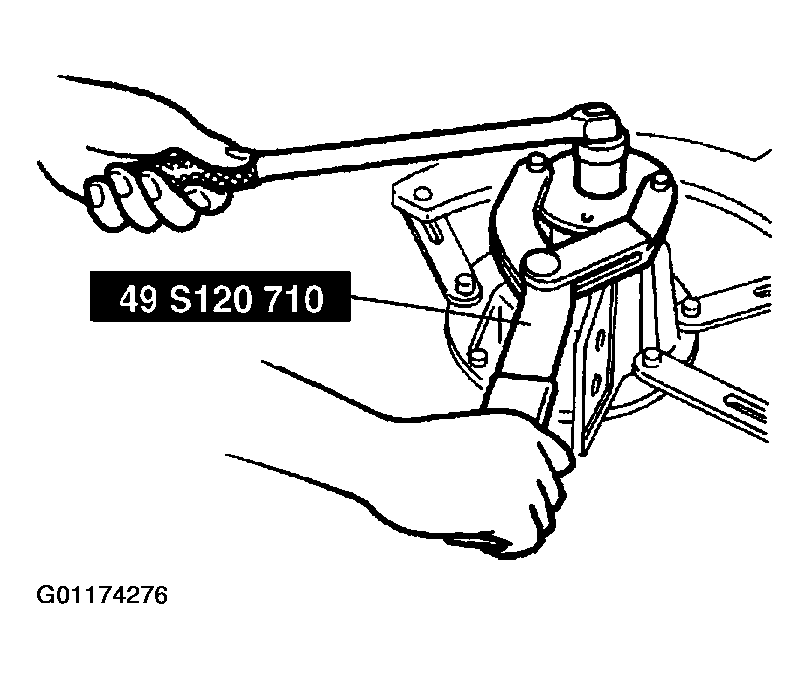

    Fig 1: Removing Companion Flange Locknut
    G01174276Courtesy of MAZDA MOTORS CORP.
