Windshield Wiper Link Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the windshield wiper arm and blade. See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .
Remove the cowl grille.
Pry off the connection between the windshield wiper motor and the windshield wiper link.
Remove in the order indicated in the table.

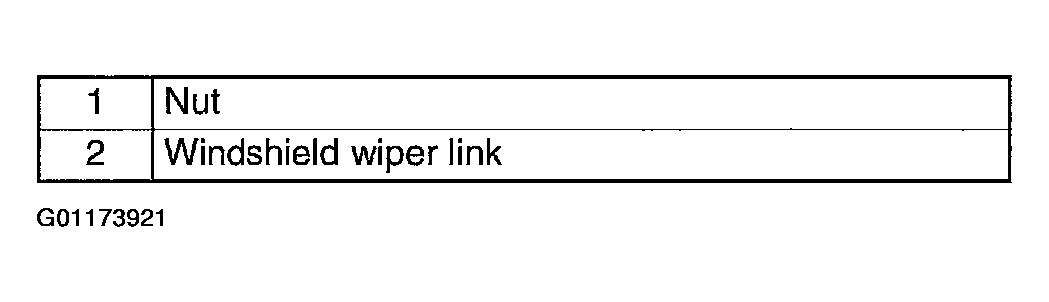

Fig 1: Windshield Wiper Link Removal Sequence Table
Courtesy of MAZDA MOTORS CORP.

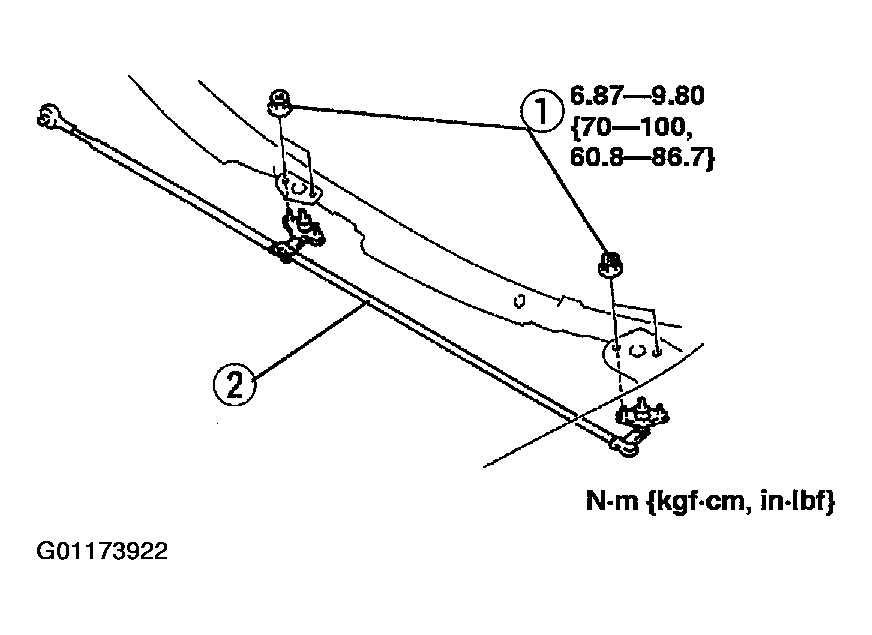

Fig 2: Removing & Installing Windshield Wiper Link
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the windshield wiper arm and blade. See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .
