Home >> Mazda >> 2004 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting (Engine Control System BP, BP With TC] >> No. 21 Engine Noise >> Diagnostic Procedure

Diagnostic Procedure

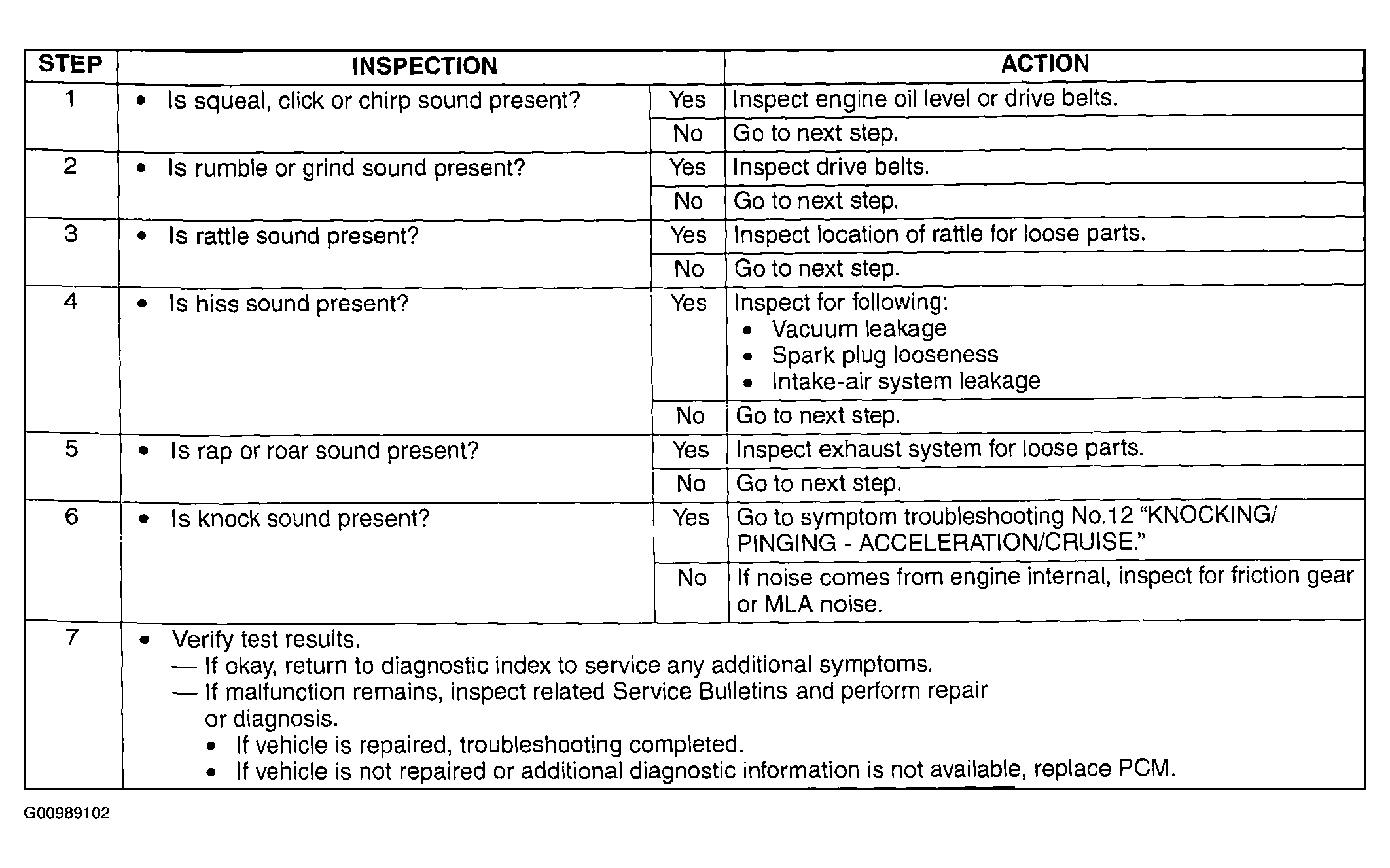

Fig 1: Diagnostic Procedure - No. 21 Engine Noise [BP, BP With TC] (Steps 1-7)
G00989102Courtesy of MAZDA MOTORS CORP.
