Symptom Troubleshooting (Engine Control System BP, BP With TC]
>>
No. 19 Exhaust Smoke
>>
Notes
No. 19 Exhaust Smoke: Notes

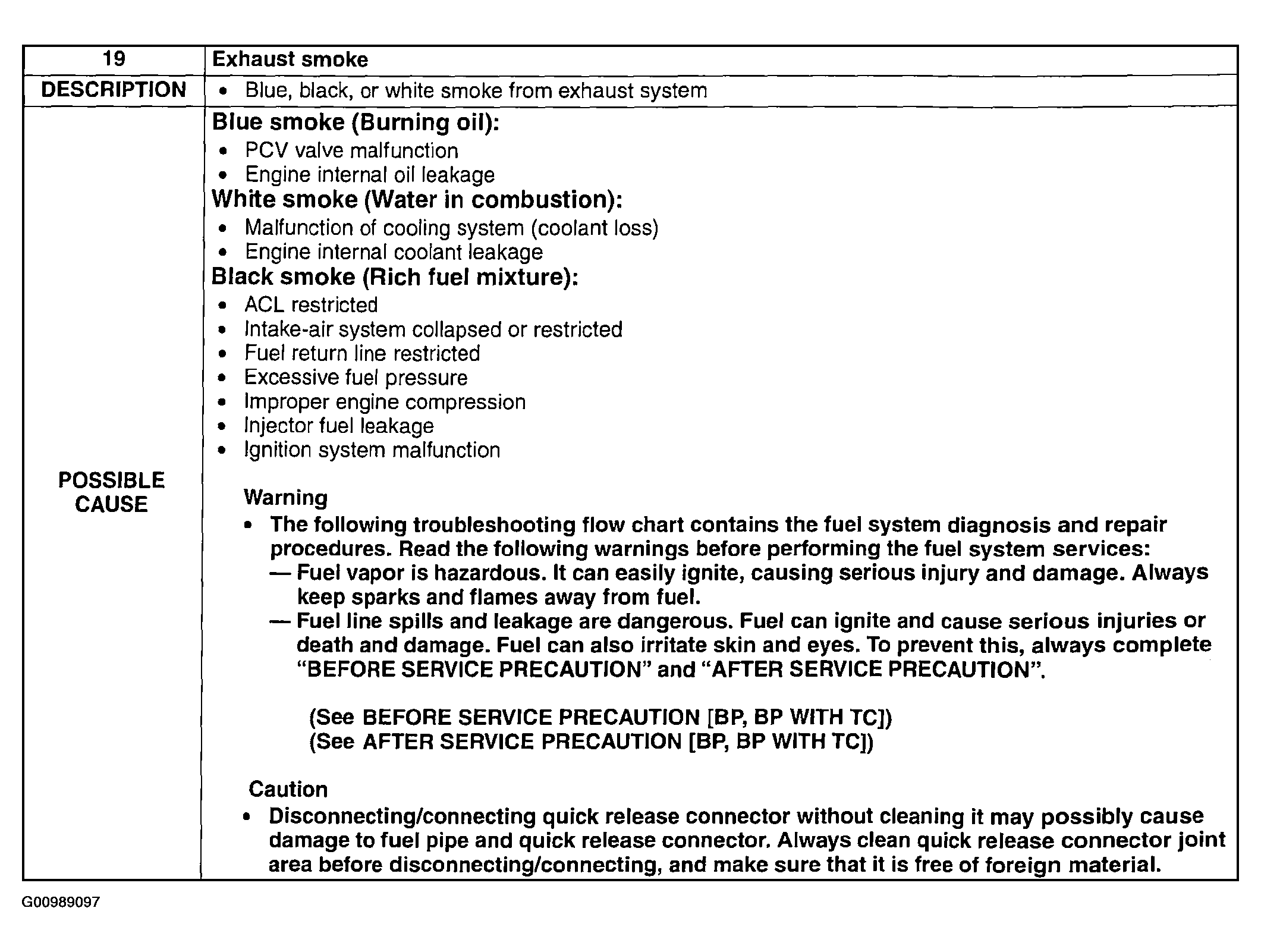

Fig 1: Possible Causes - No. 19 Exhaust Smoke [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
