Diagnostic Procedure

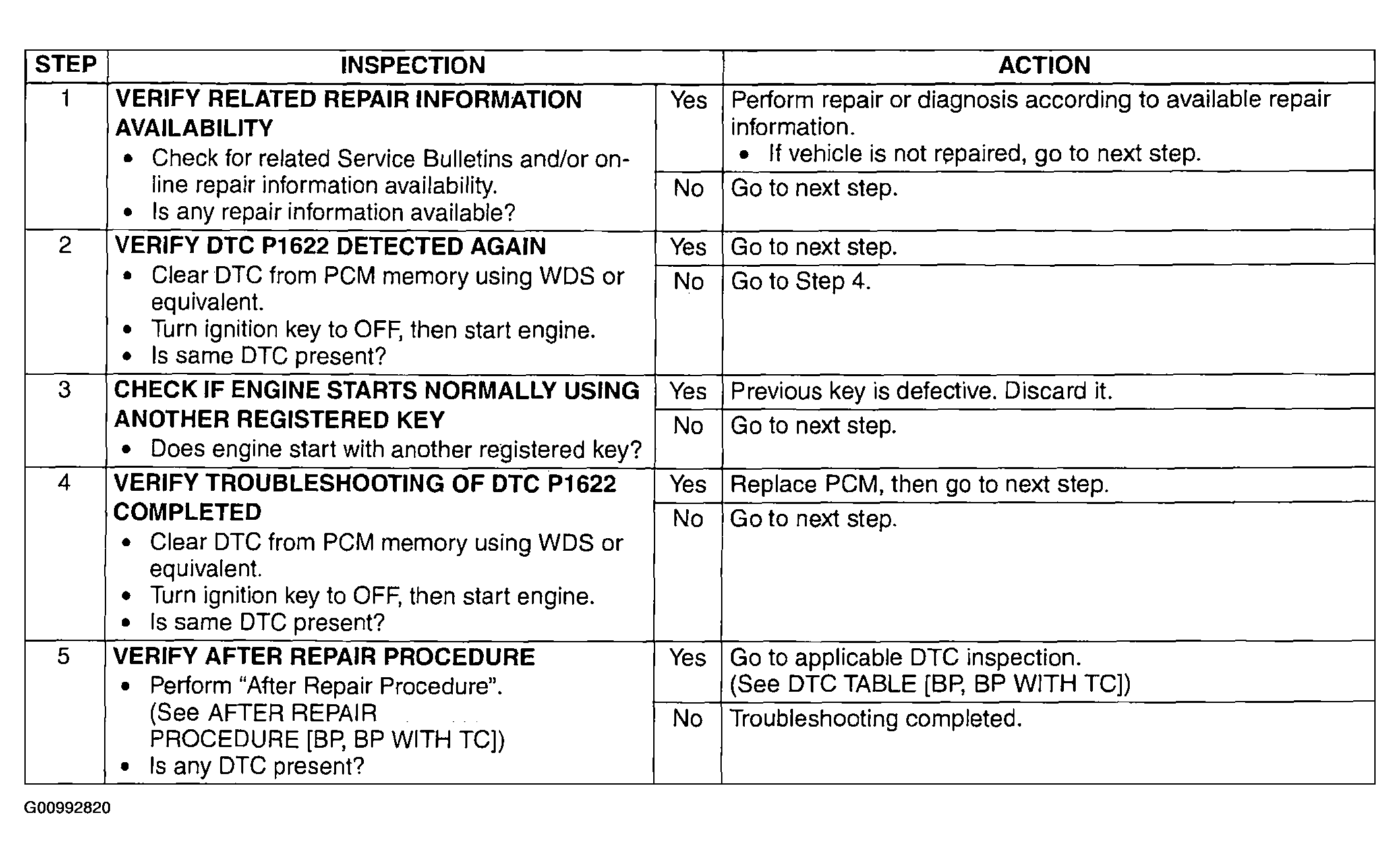

Fig 1: Diagnostic Procedure - DTC P1622 [BP, BP With TC]
G00992820Courtesy of MAZDA MOTORS CORP.
