Diagnostic Procedure

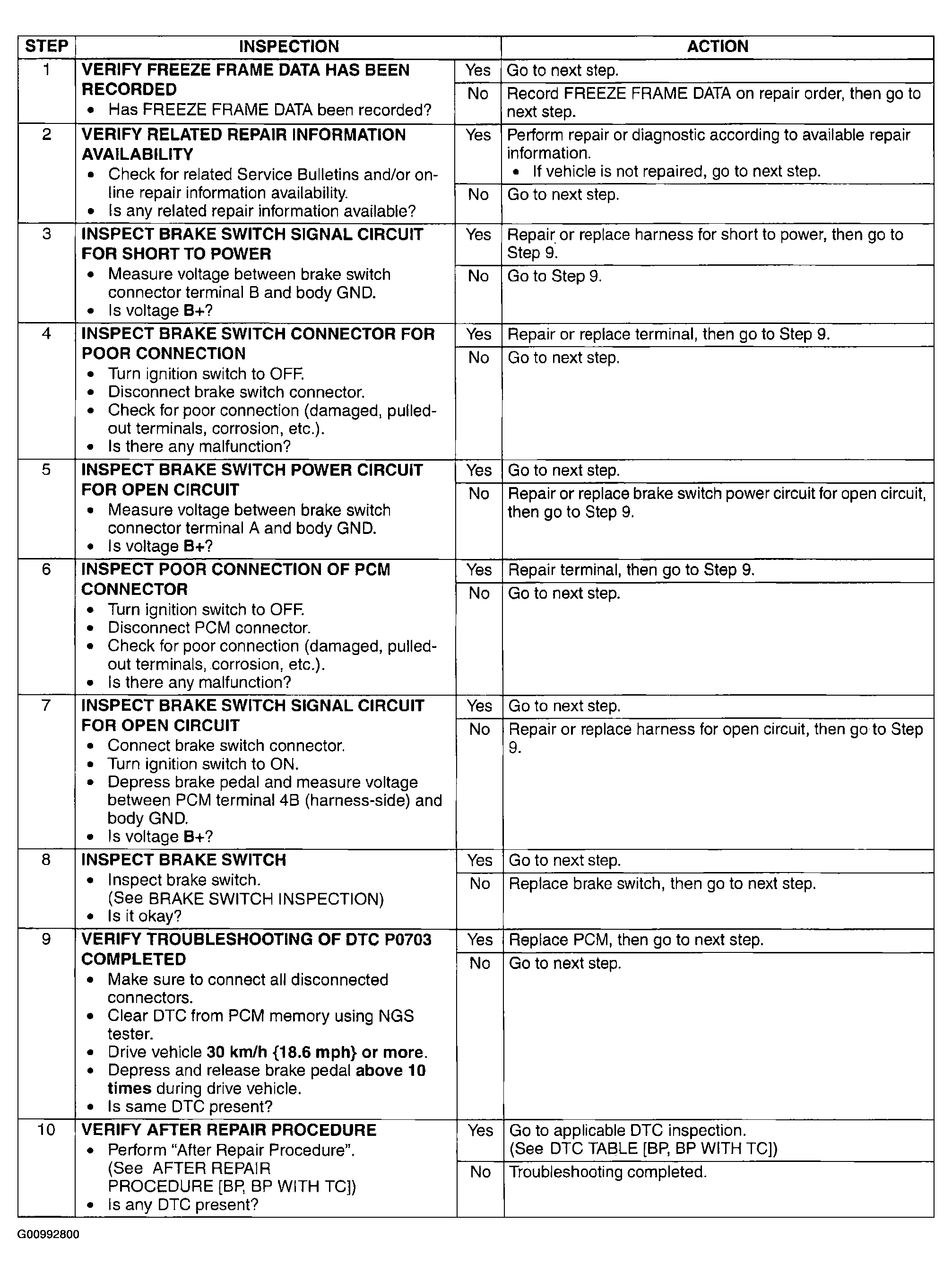

Fig 1: Diagnostic Procedure - DTC P0703 [BP, BP With TC]
G00992800Courtesy of MAZDA MOTORS CORP.
