Home >> Mazda >> 2004 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System BP, BP With TC] >> DTC P0102: MAF Circuit Low Input >> Notes

DTC P0102: MAF Circuit Low Input: Notes

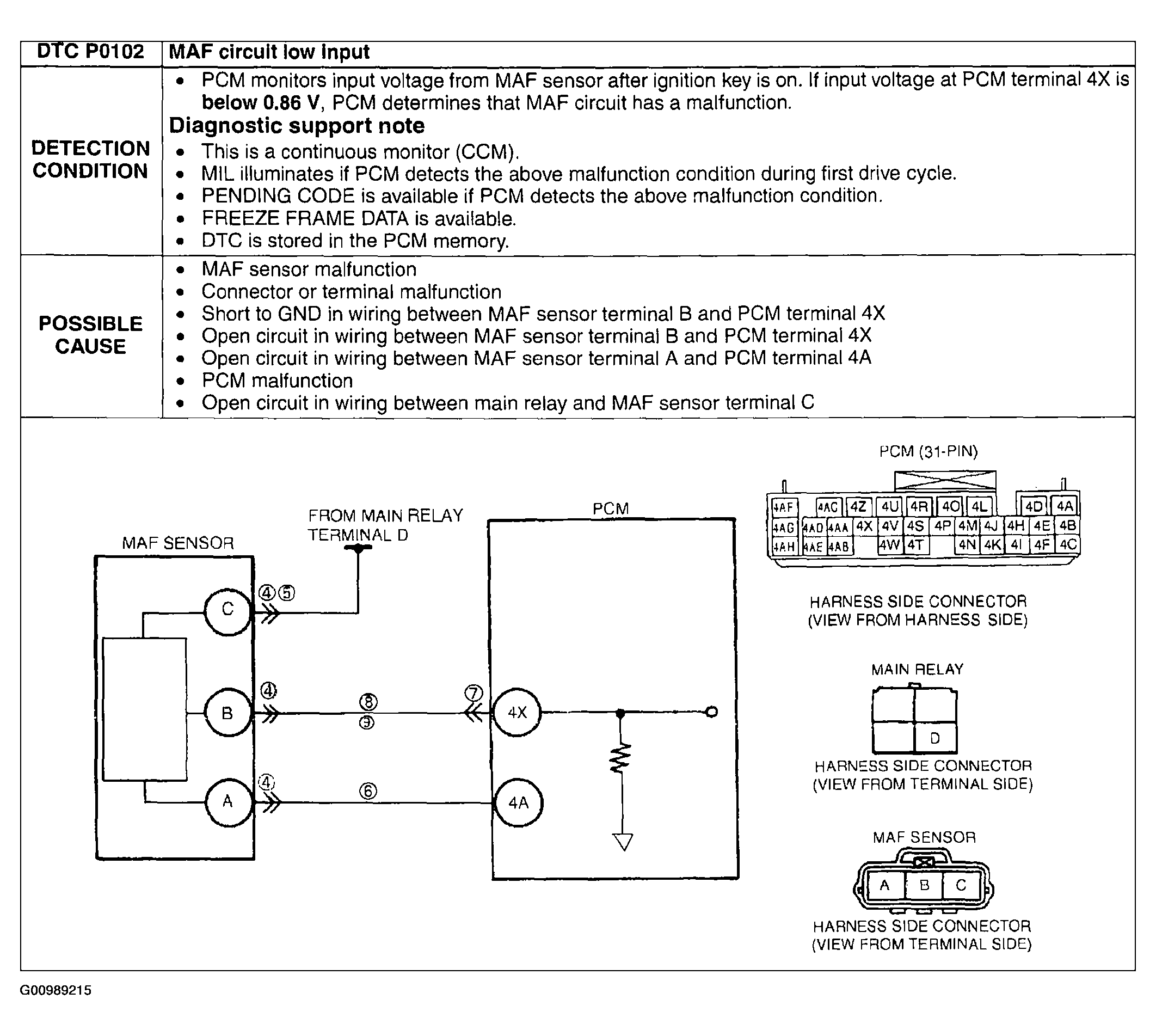

Fig 1: Possible Causes - DTC P0102 [BP, BP With TC]

G00989215

Courtesy of MAZDA MOTORS CORP.
