Purge Solenoid Valve Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in illustration.

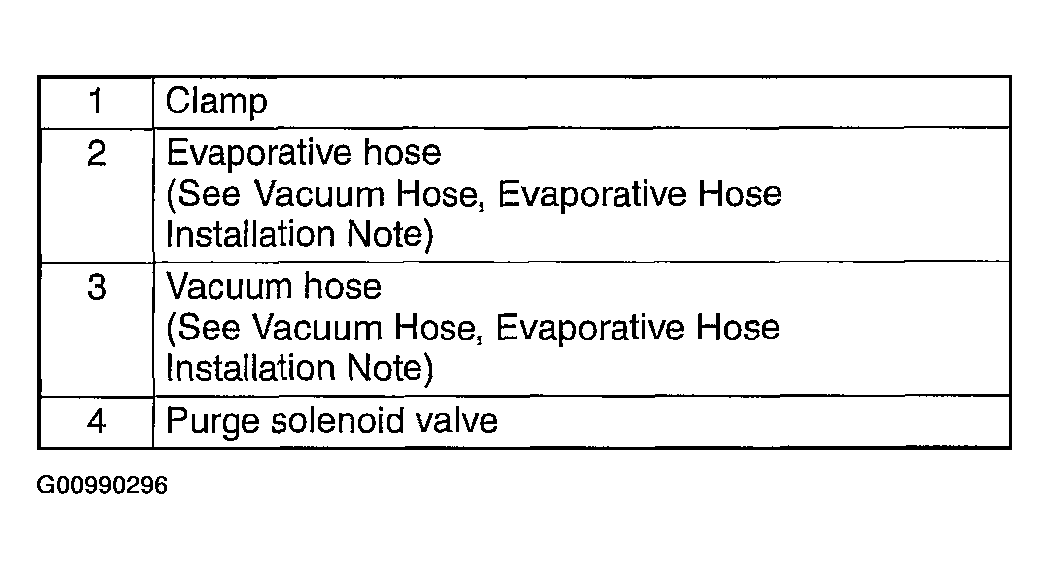

    Fig 1: Removal Order Of Purge Solenoid Valve
    G00990296Courtesy of MAZDA MOTORS CORP.

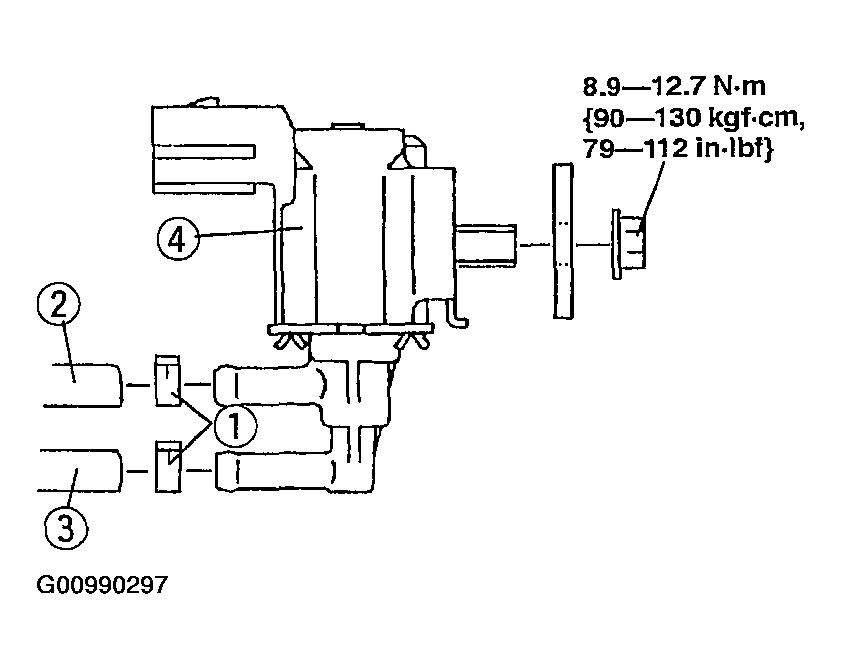

    Fig 2: Removing/Installing Purge Solenoid Valve
    G00990297Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
