EGR Valve Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in illustration.

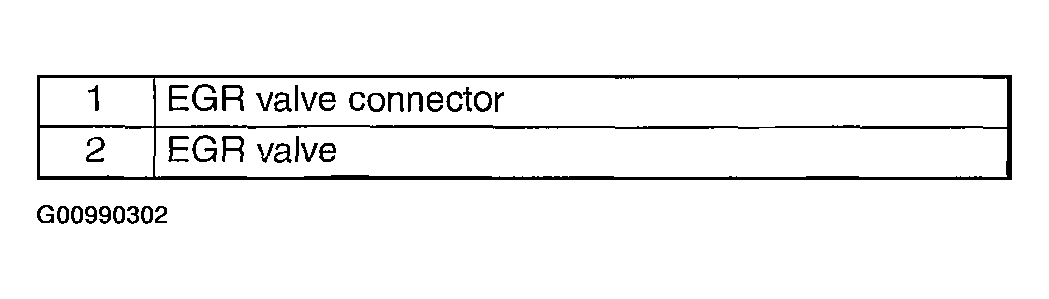

    Fig 1: Removal Order Of EGR Valve
    G00990302Courtesy of MAZDA MOTORS CORP.

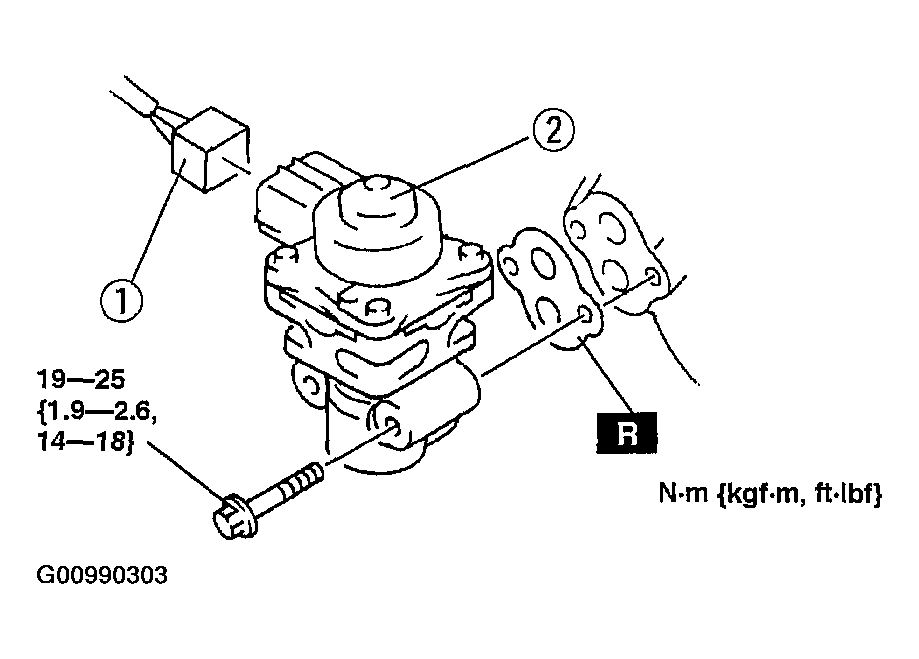

    Fig 2: Removing/Installing EGR Valve [BP, BP With TC]
    G00990303Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Connect the negative battery cable.
