Oil Pump Installation Note

Apply clean engine oil to the new oil seal.
Push the oil seal slightly in by hand.
Press the oil seal in evenly using the SST .

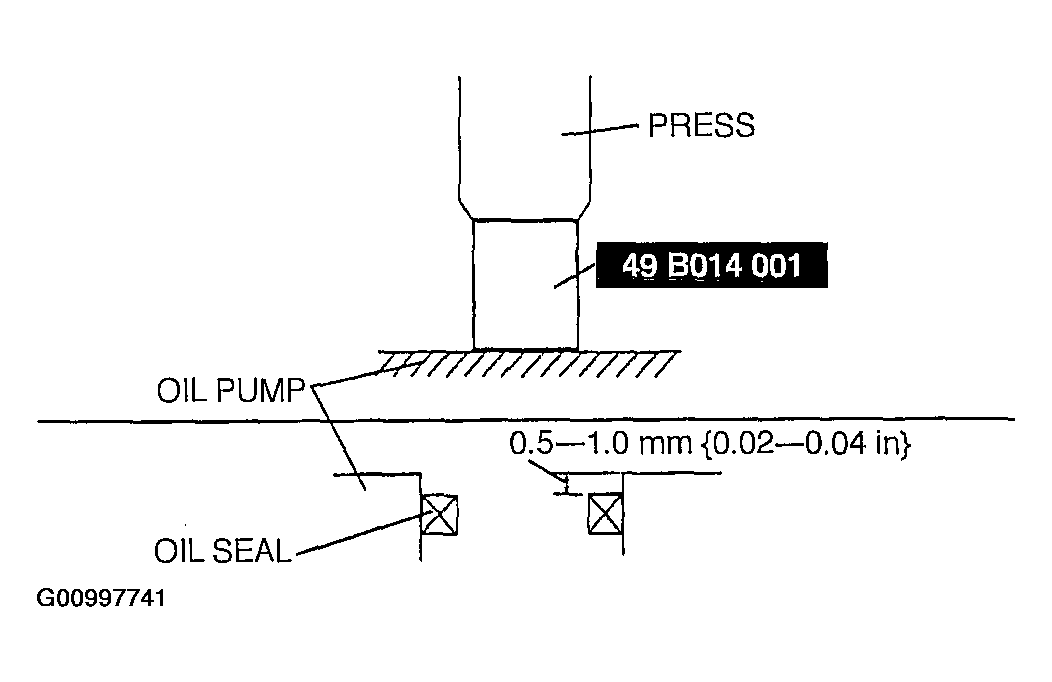

Fig 1: Installing Oil Seal
Courtesy of MAZDA MOTORS CORP.
Install a new O-ring.
Apply silicone sealant to the oil pump as shown in the figure.
1. Thickness: 1-2 mm {0.040-0.078 in}

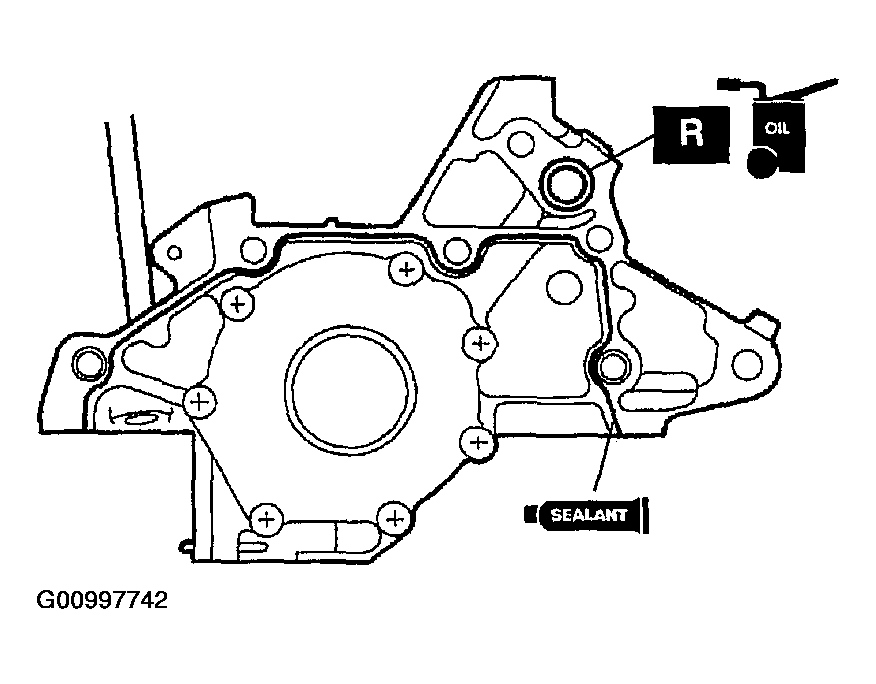

Fig 2: Applying Silicone Sealant
Courtesy of MAZDA MOTORS CORP.
Install the oil pump.
Cut away the portion of the silicone sealant the projects from the body toward the oil pan side.
