Pressure Spring Inspection

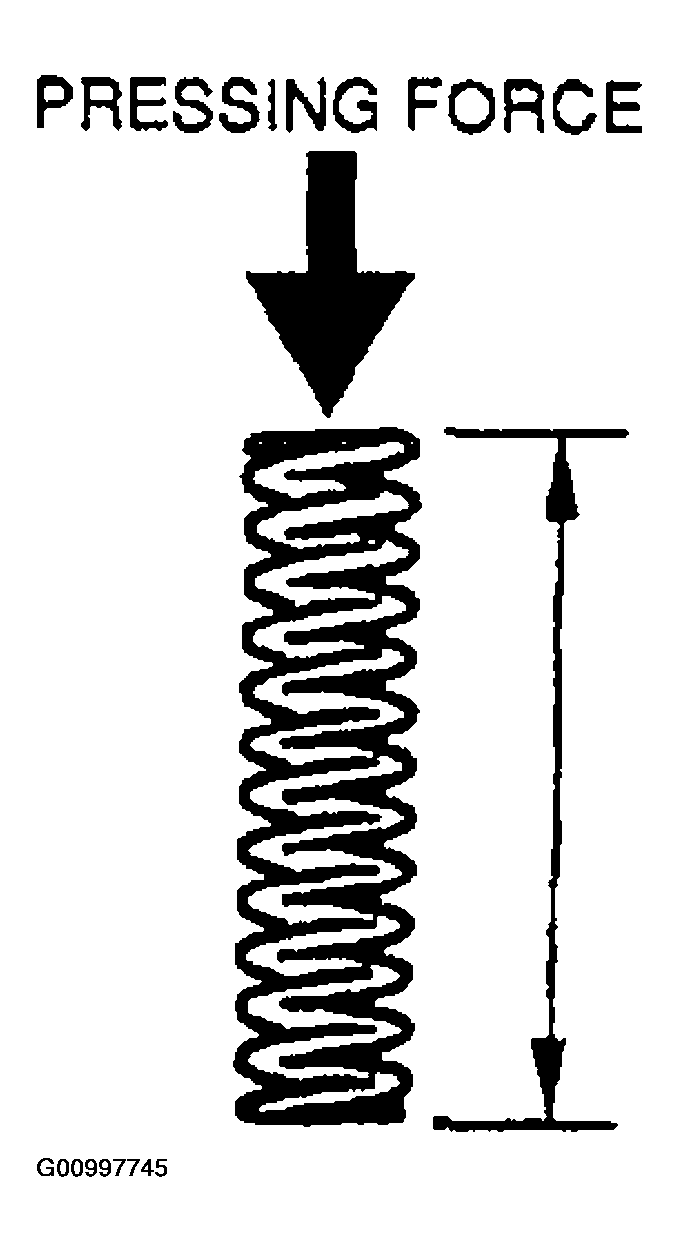

- Apply pressing force to the pressure spring and measure the spring height.
- If not as specified, replace the pressure spring.
- Standard height: 35.37 mm {1.393 in} [Pressing force: 88.1 {8.98 kgf, 19.8 lbf}]
- Free length (Reference): 46.79 mm {1.842 in}
