Lubrication System Location Index

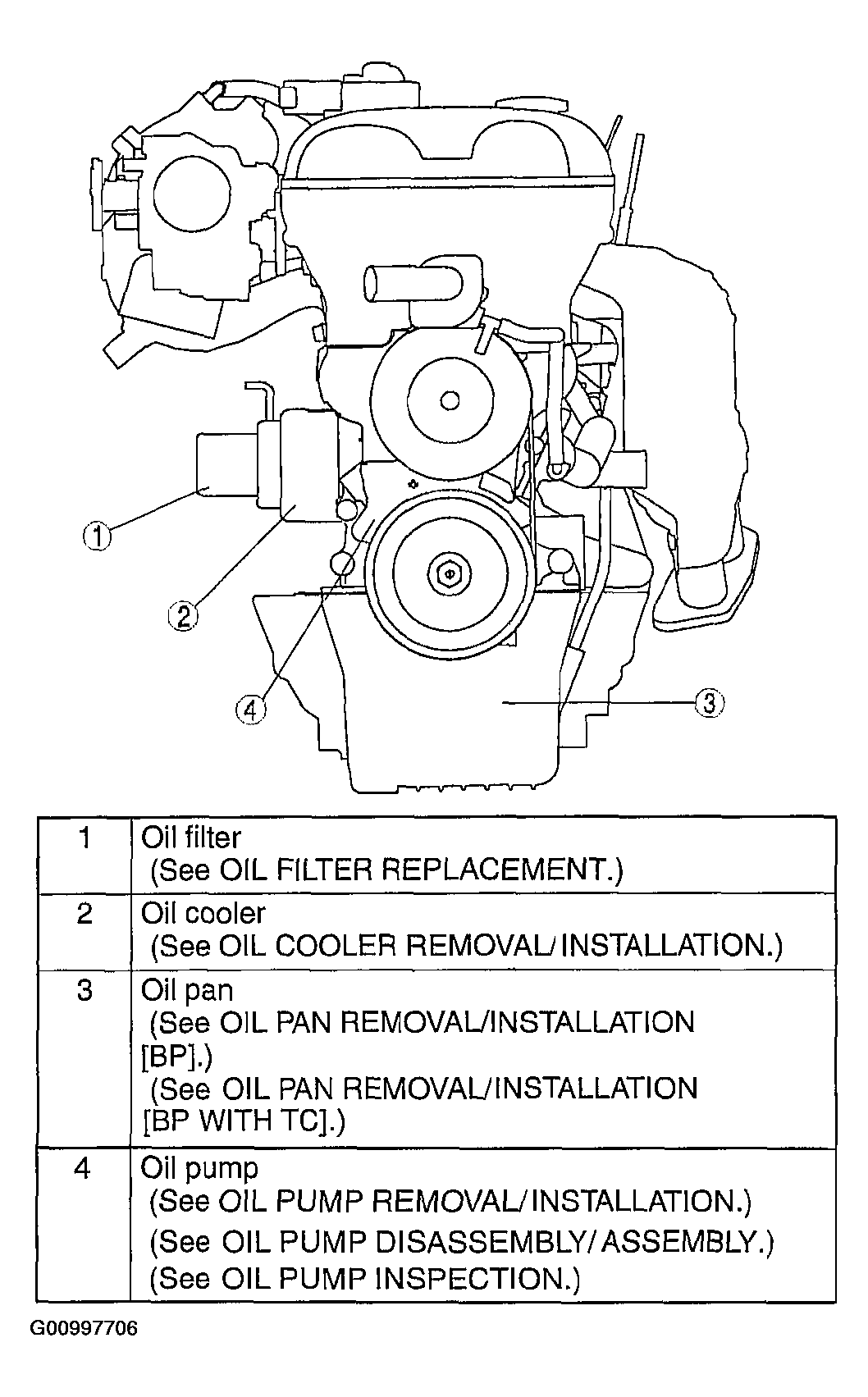

Fig 1: Locating Lubrication System Components

G00997706

Courtesy of MAZDA MOTORS CORP.
