Thermostat Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the air hose (without TC).
  3. Drain the engine coolant. See ENGINE COOLANT REPLACEMENT .
  4. Remove in the order indicated in the figures.

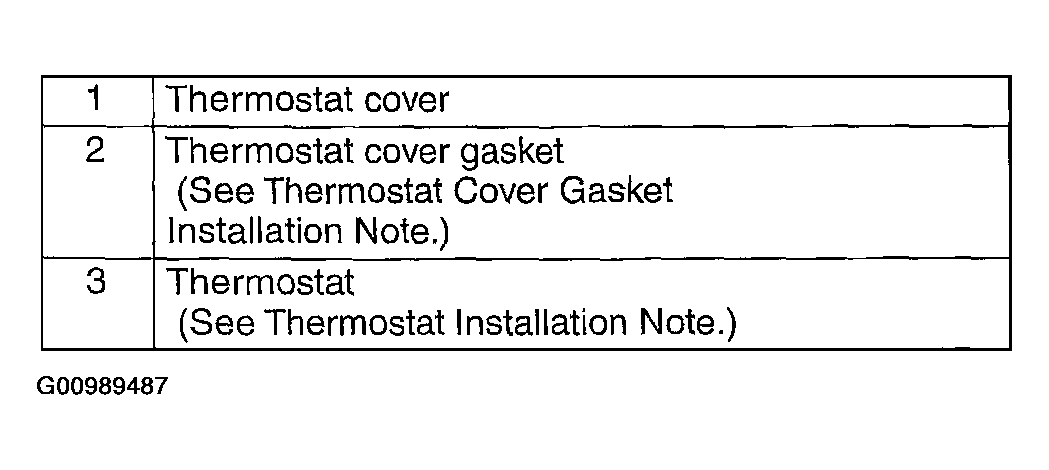

    Fig 1: Removing Order Of Thermostat
    G00989487Courtesy of MAZDA MOTORS CORP.

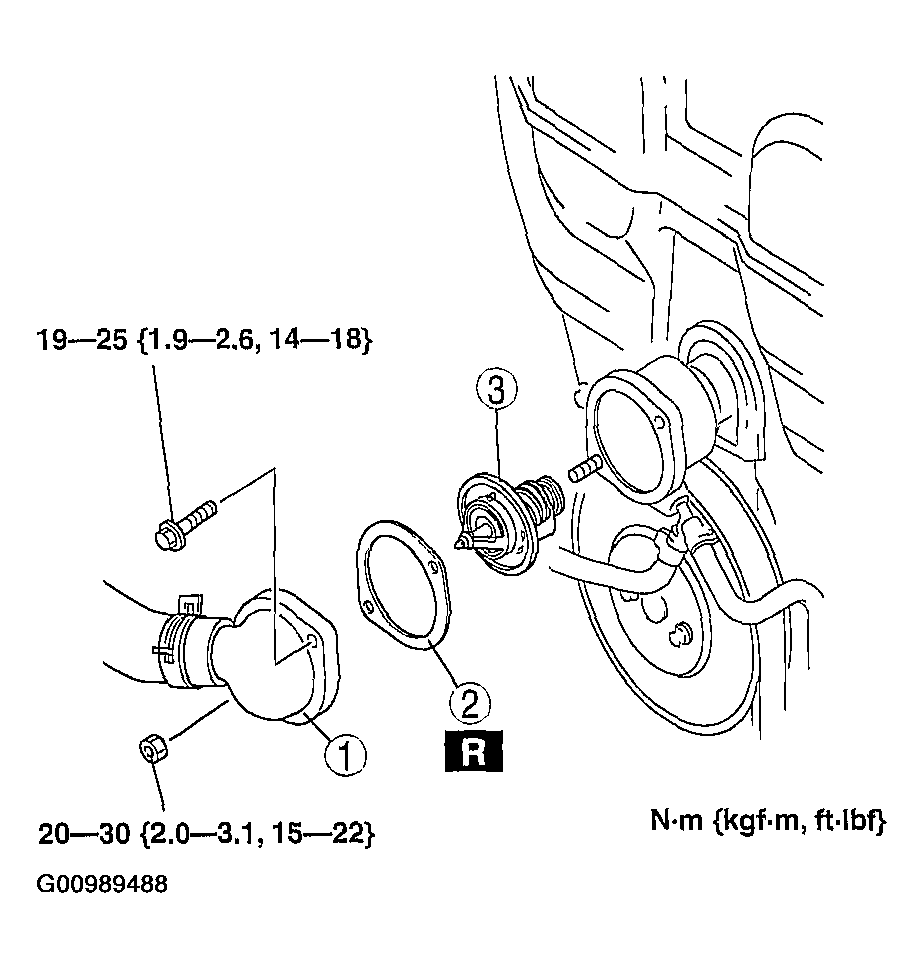

    Fig 2: Removing/Installing Thermostat
    G00989488Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
