Instrument Cluster Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
    Fig 1: Instrument Cluster Removing/Installing Sequence Order Table
    G00997228Courtesy of MAZDA MOTORS CORP.

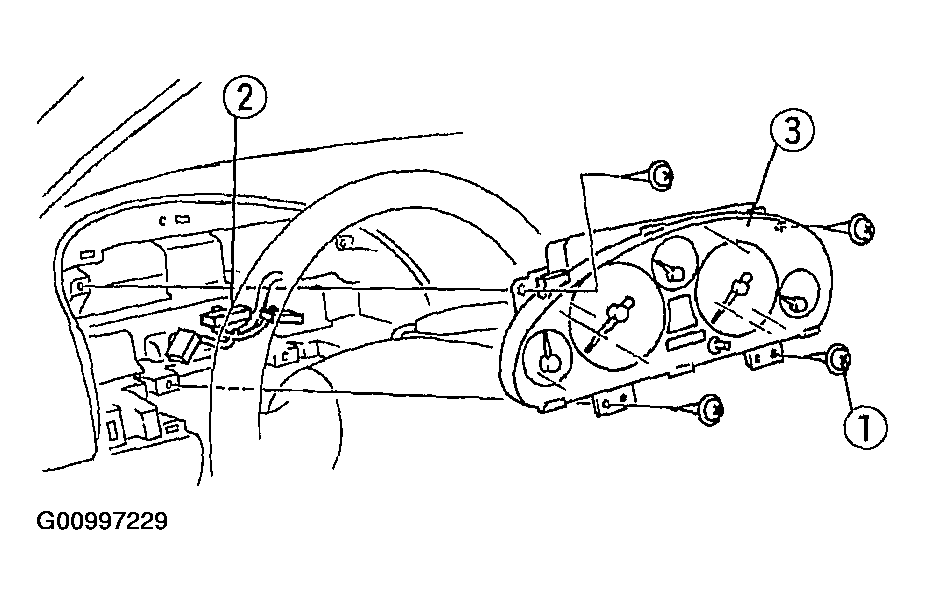

    Fig 2: Removing/Installing Instrument Cluster
    G00997229Courtesy of MAZDA MOTORS CORP.
