Locknut Installation Note

  1. Install a new locknut and stake it.
    1. Tightening torque 236-318 N.m {24.0-32.5 kgf.m, 174-235 f

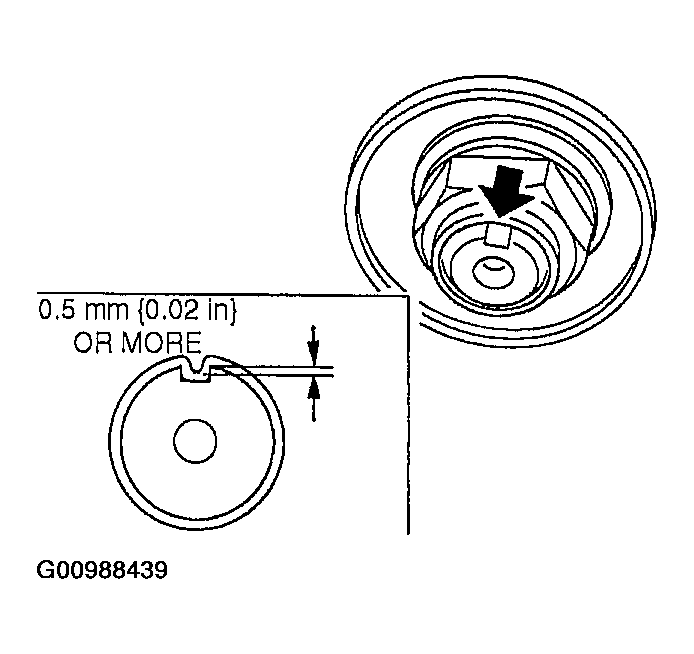

    Fig 1: Staking Lock Nut
    G00988439Courtesy of MAZDA MOTORS CORP.
