Wheel Hub Bolt Replacement

  1. Remove the hub bolt using the SST.
  2. Install the hub bolt into the wheel hub and install a washer and hub nut on the hub bolt using a brass bar.

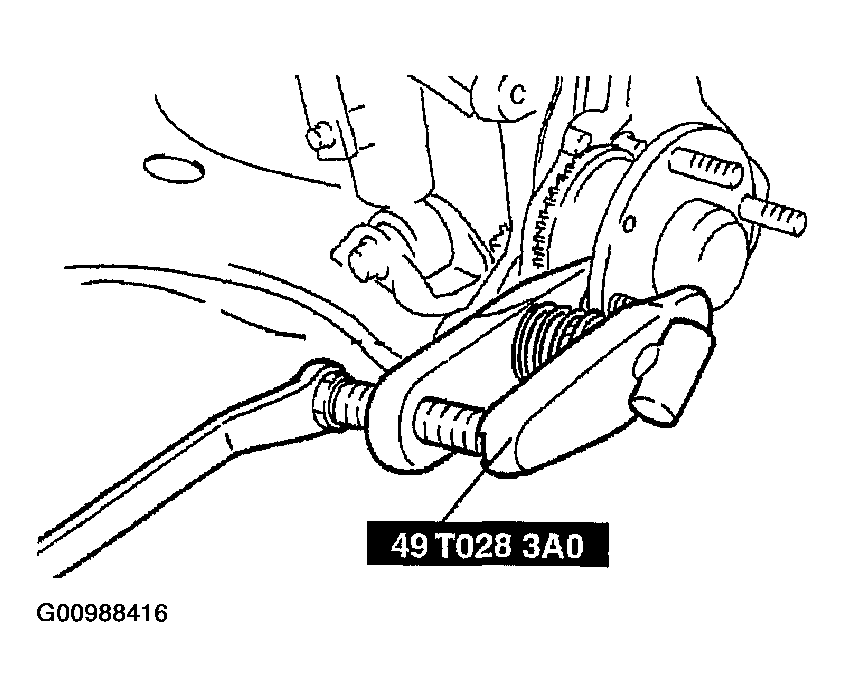

    Fig 1: Removing Hub Bolt
    G00988416Courtesy of MAZDA MOTORS CORP.
  3. Tighten the hub nut while holding the wheel hub using a brass bar.

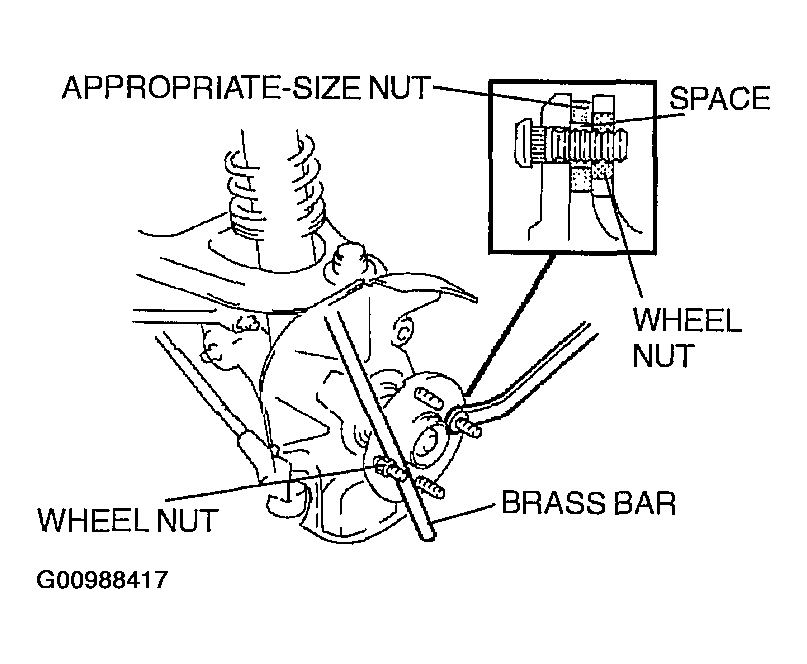

    Fig 2: Installing Hub Bolt
    G00988417Courtesy of MAZDA MOTORS CORP.
