Abs On-Board Diagnosis
>>
PID/Data Monitor Table
PID/Data Monitor Table

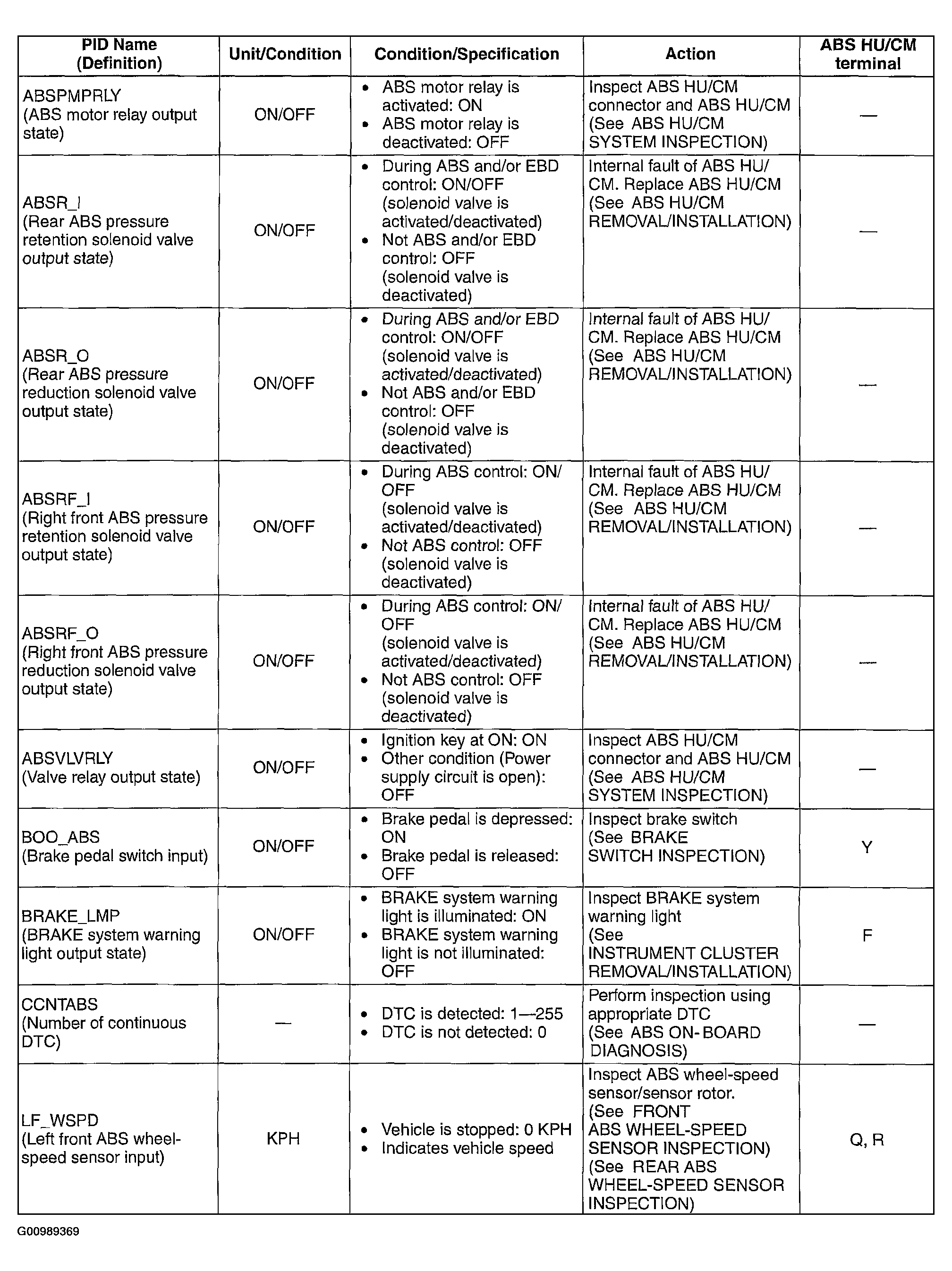

Fig 1: PID/Data Monitor Table (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

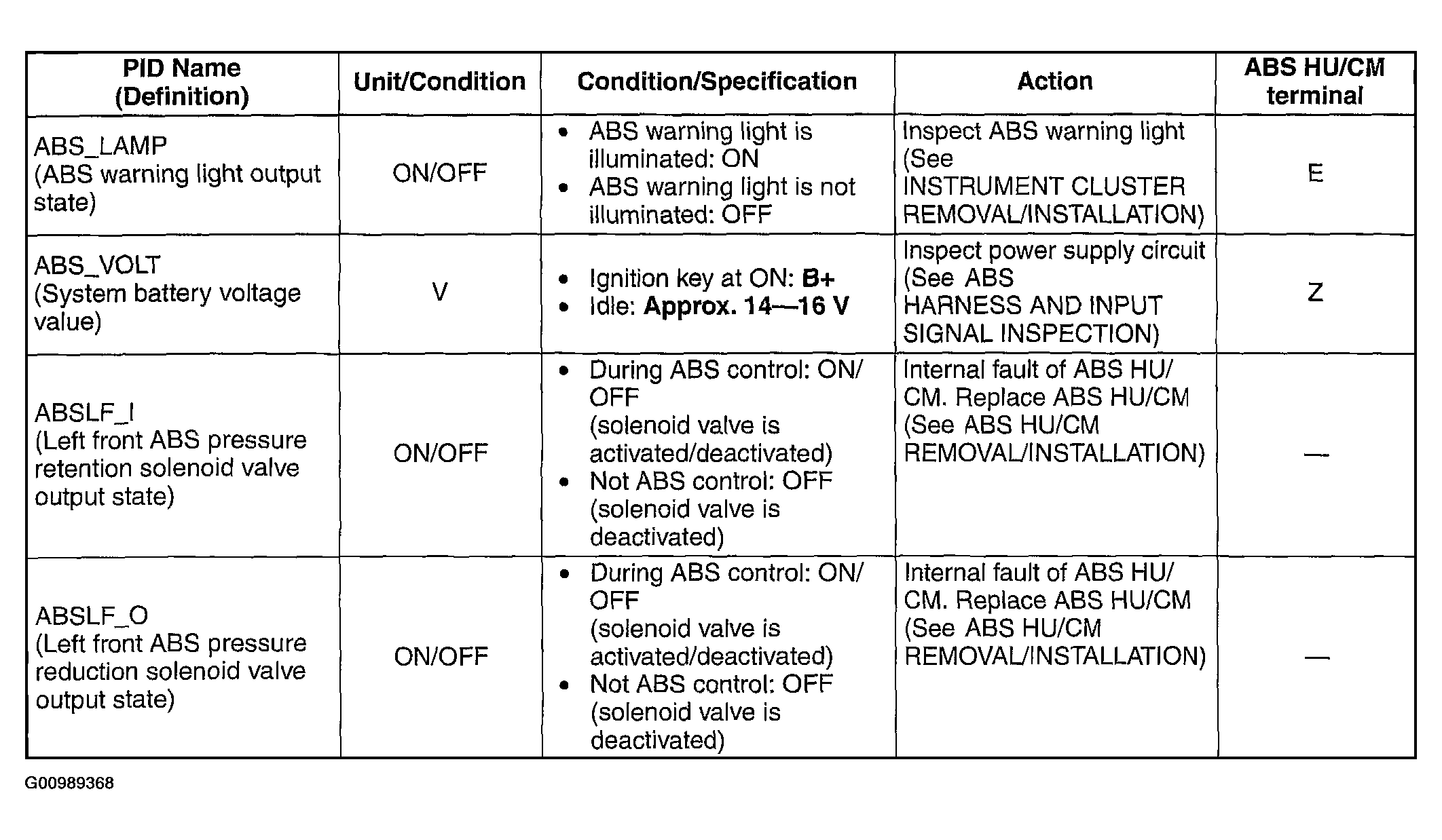

Fig 2: PID/Data Monitor Table (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

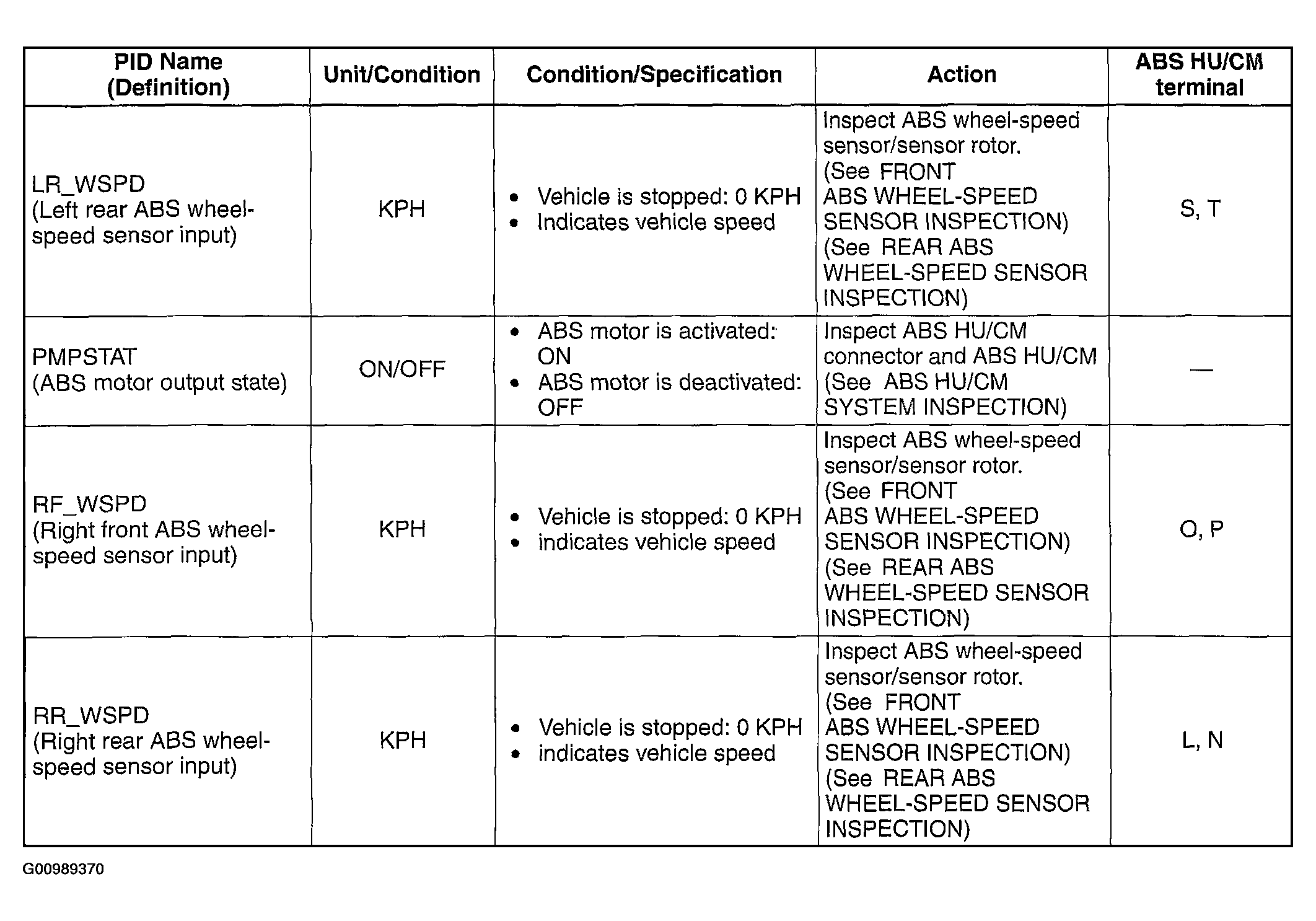

Fig 3: PID/Data Monitor Table (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
