Detachable Hardtop

NOTE:

Remove the rear window molding.
Apply protective tape along the edge of the body to protect it from damage.
Remove the rear window glass installation nuts.
Make a hole through the sealant and the dam from the inside of the vehicle using an awl.
WARNING:
- Using a SST (piano wire) with bare hands can cause injury. Always wear gloves when using a SST (piano wire).
Pass the SST (piano wire) through the hole.
Wind each end of the SST (piano wire) around a bar.
NOTE:
- Use the entire length of SST (piano wire) to prevent it from breaking when cutting through the sealant.
Fig 1: Pass Piano Wire Through Hole
Courtesy of MAZDA MOTORS CORP.
Working with another person, saw through the sealant around the edge of the glass, being careful not to damage the body.
WARNING:
- Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

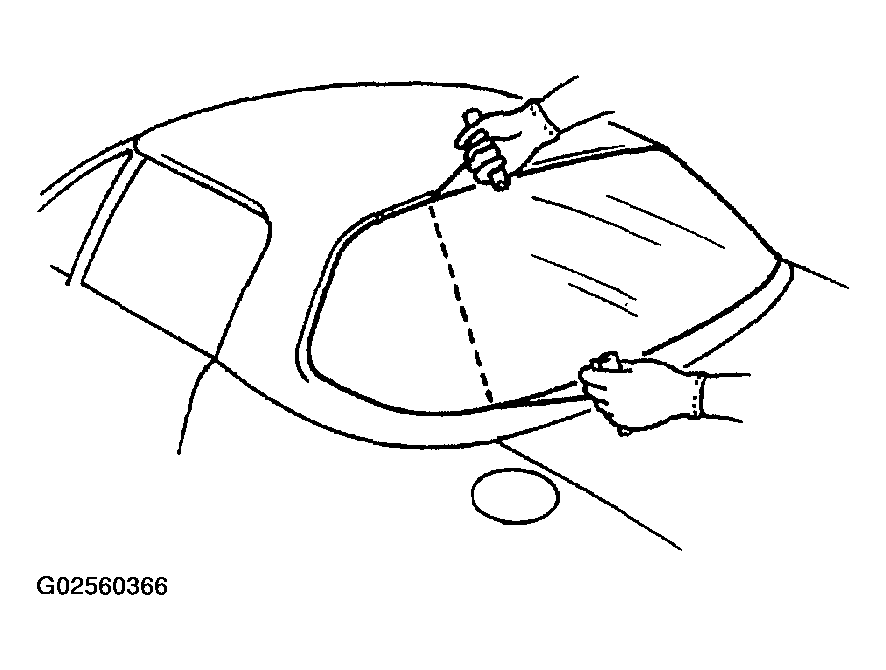

Fig 2: Cutting Sealant Around Edge Of Glass
Courtesy of MAZDA MOTORS CORP.
Use a razor to cut the places of rear window glass installation nuts where the SST (piano wire) will not cut.

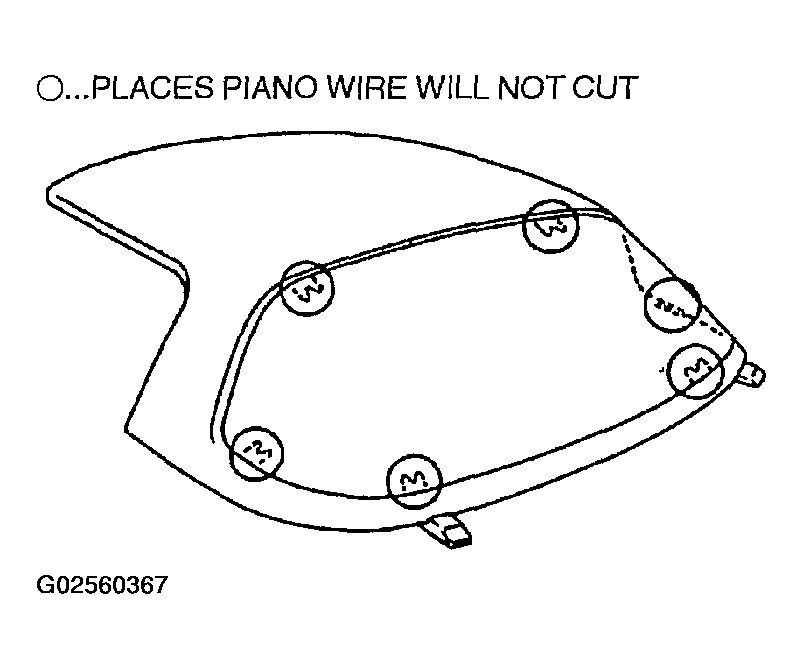

Fig 3: Locating Places Piano Wire Will Not Cut
Courtesy of MAZDA MOTORS CORP.
Remove the rear window glass.
Remove the dam.

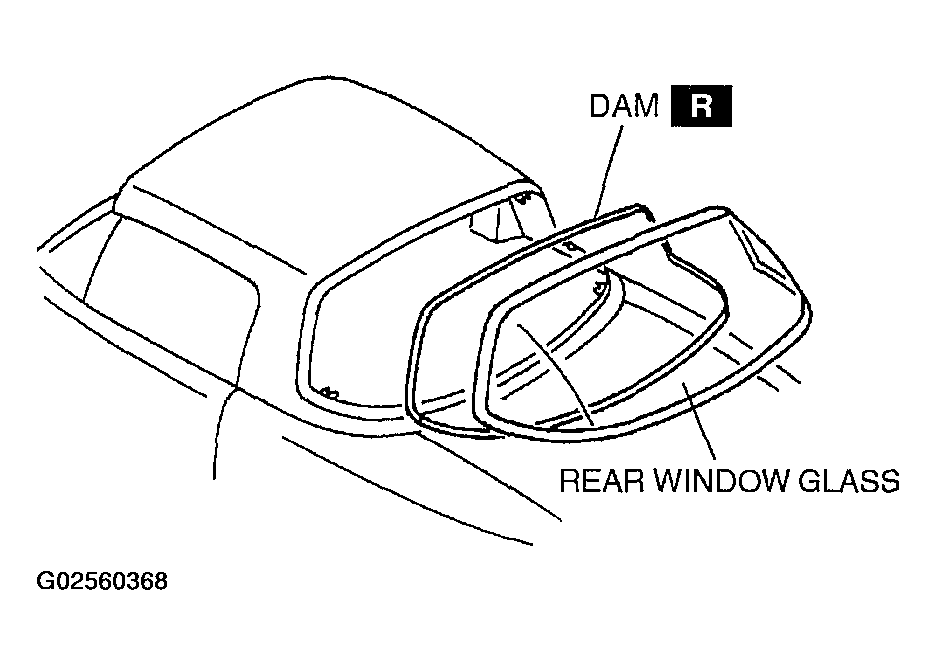

Fig 4: Removing Dam
Courtesy of MAZDA MOTORS CORP.
